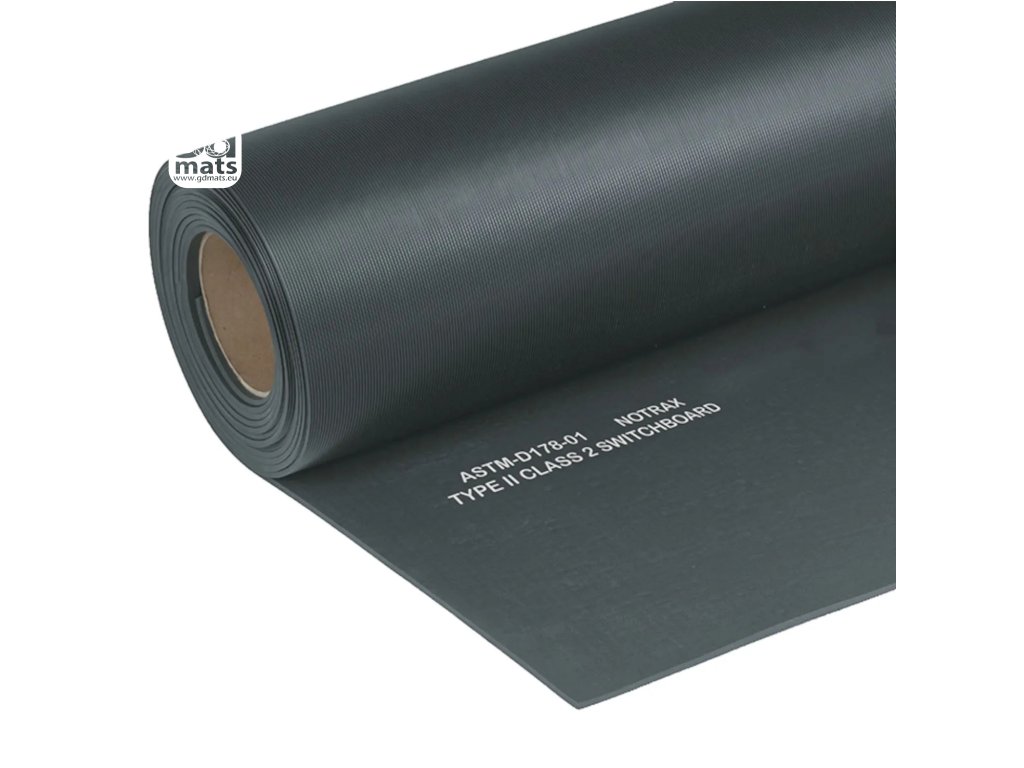

830 Switchboard Matting Class 2 - Insulating mat for Class 2 switchboards
Insulating mat protects workers from "grounding" and provides safety in case of electric shock. The notched surface increases adhesion and is easy to clean.
Main product benefits:
- Tested in accordance with ANSI/ASTM D-178 standards
- Knurled surface for increased grip and easy cleaning
- Replacement required every 12 months for optimal safety
- Recommended maximum use: 17,000 Volts
- Thickness 6.4 mm for reliable protection
830 Switchboard Matting™ Class 2 - Insulating mat for switchboards class 2
Product description: The insulating mat prevents workers from being "grounded" and provides safety in case of electric shock. The serrated "saw" surface increases grip and is easy to clean. Every square centimeter of the mat is tested in accordance with ANSI/ASTM D-178 specifications.
Main product benefits:
- Tested in accordance with ANSI/ASTM D-178 standards
- Knurled surface for increased grip and easy cleaning
- Replacement required every 12 months for optimal safety
- Recommended maximum use: 17,000 Volts
- Class 2 - Dielectric strength: 30,000 V
- Trial test: 20,000 Volts

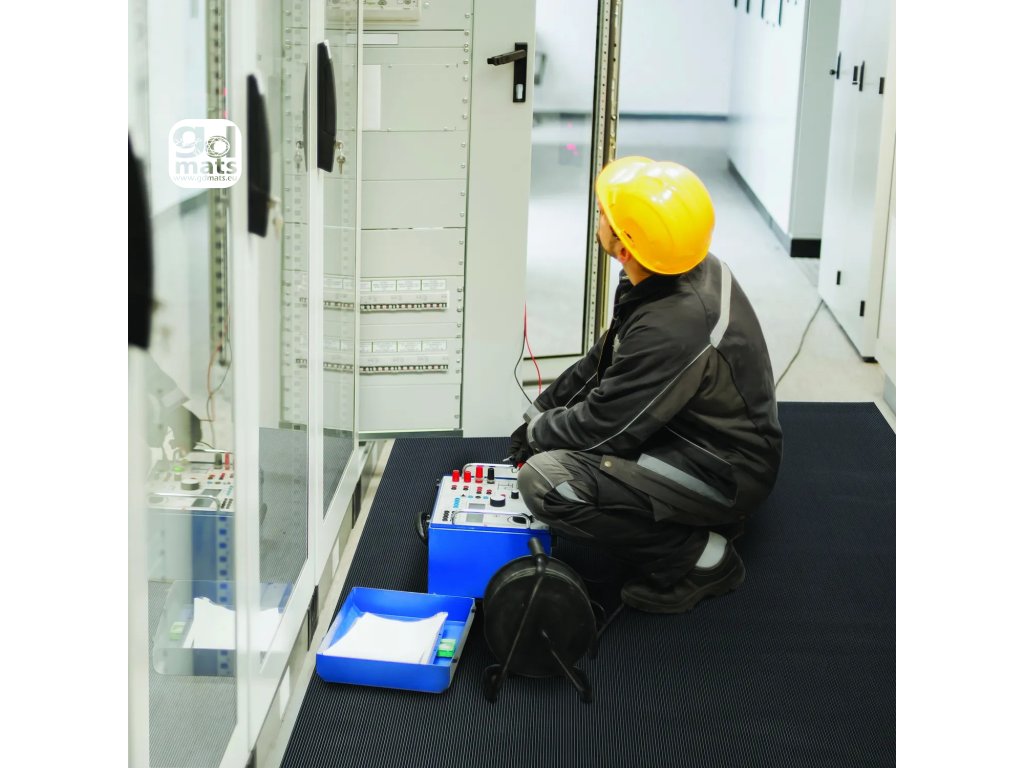

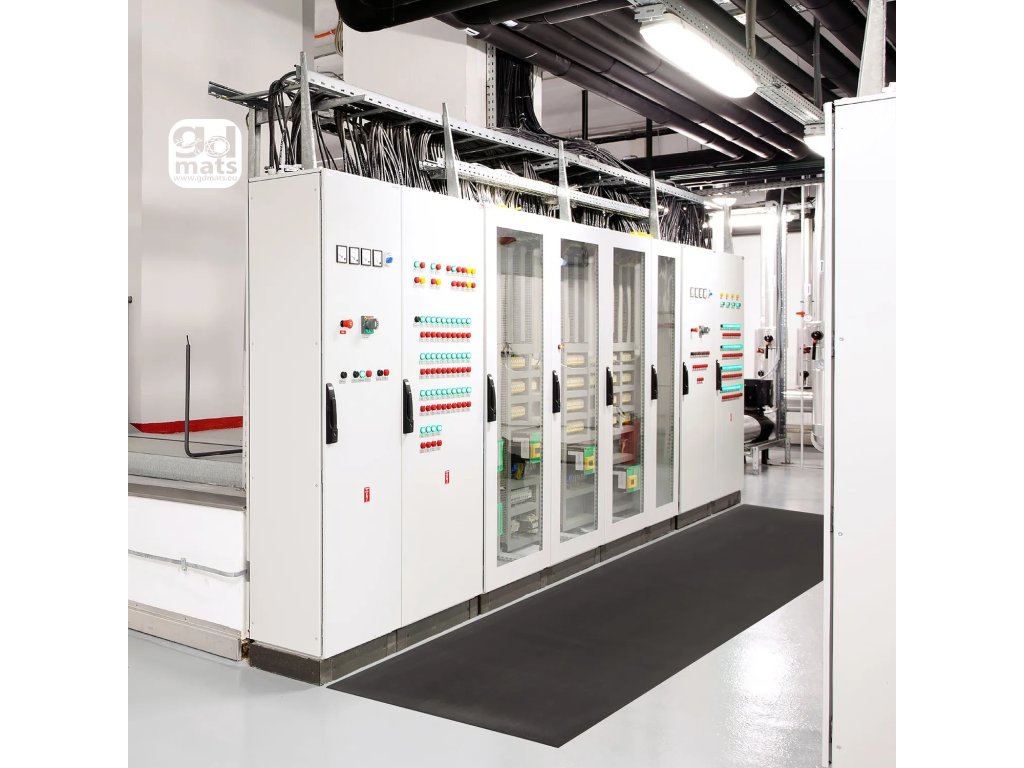

Recommended use: Around electrical substations, transformers and switches, electrical panels, engine and generator rooms
Environment: Dry zones
Application: Industrial environment
Intensity of use: Heavy traffic
Cleaning and maintenance: Daily sweeping with a brush. Sweep or dry mop the surface and back of the mat regularly. The surface can be washed with a damp mop with mild soap/detergent.
Technical specifications:
- Material: PVC
- Material group: PVC
- Manufacturing process: Calendering
- Voltage class: 2
- Maximum voltage: 20,000 V
- Recommended voltage: 17,000 V
- Hardness: 91 Shore A
- Surface flammability: Passes
- Extension: 317%
- Breaking strength: 2505 PI
- Edges: No borders
- Thickness: 6.4 mm
Sustainability:
- REACH compliant (Registration, evaluation, authorization and restriction of chemical substances)
- RoHS compliant (Restriction of Hazardous Substances)
Warranty: 1 year
Available colors:
- Black
Available sizes:
- 90 cm x 150 cm (order no. 830S0035BL)
- 91 cm x linm (order no. 830C0036BL)
- 91 cm x 22.8 m (order no. 830R0375BL)
| Category: | Industrial mats |
|---|---|
| EAN: | Choose variant |
| Warranty: | 1 year |
| Slip resistance: | PVC |
| ? Benefits Sought: | Anti - Slip, Insulation, Nevodivý, Wheel and Cart Friendly |
| ? Usage Intensity: | Heavy Trafic, Intenzívne používanie |
| ? Environment: | Dry area |
| ? Place of use: | interior |
| ? Size options: | Custom length, Full Poll |
| 2 Made in: | United States |
