827 Anti-Stat POP - Antistatic vinyl work floor

827 Anti-Stat POP™ is part of a specialized line of ESD accessories that ensure a static-free workplace and protect employees and sensitive electronic equipment. This accessory is used to connect the working surface of the table, employees and conductive materials to a common grounding point. This creates a balance between all objects and personnel, which ensures a controlled discharge of static electricity into the ground.

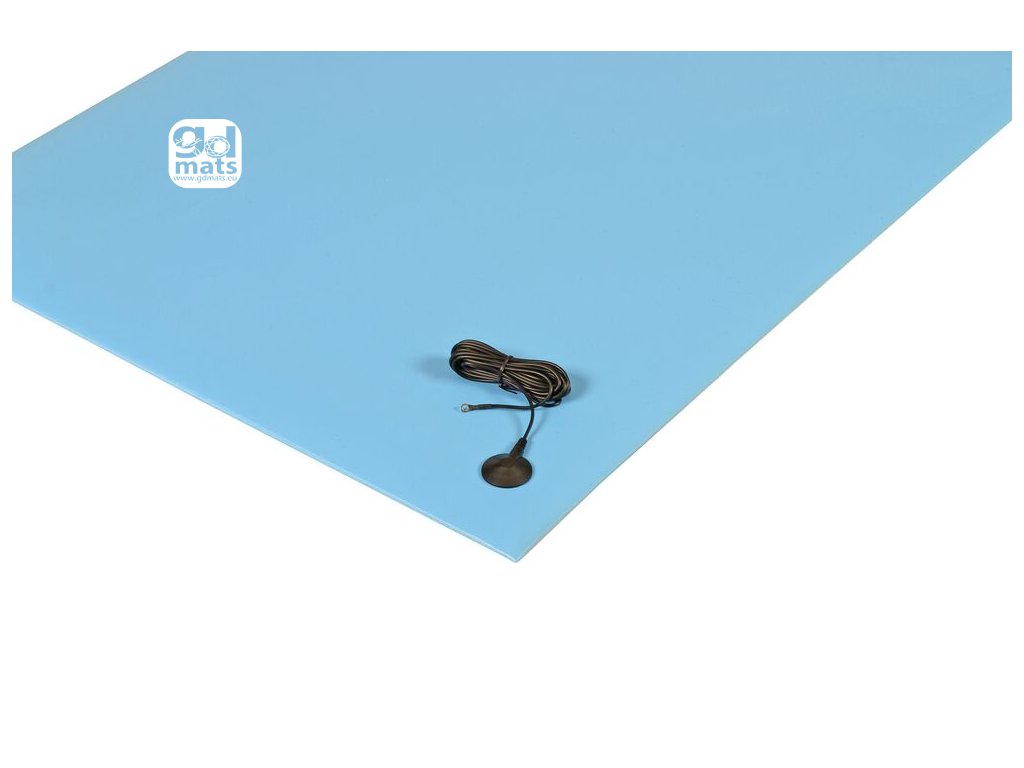

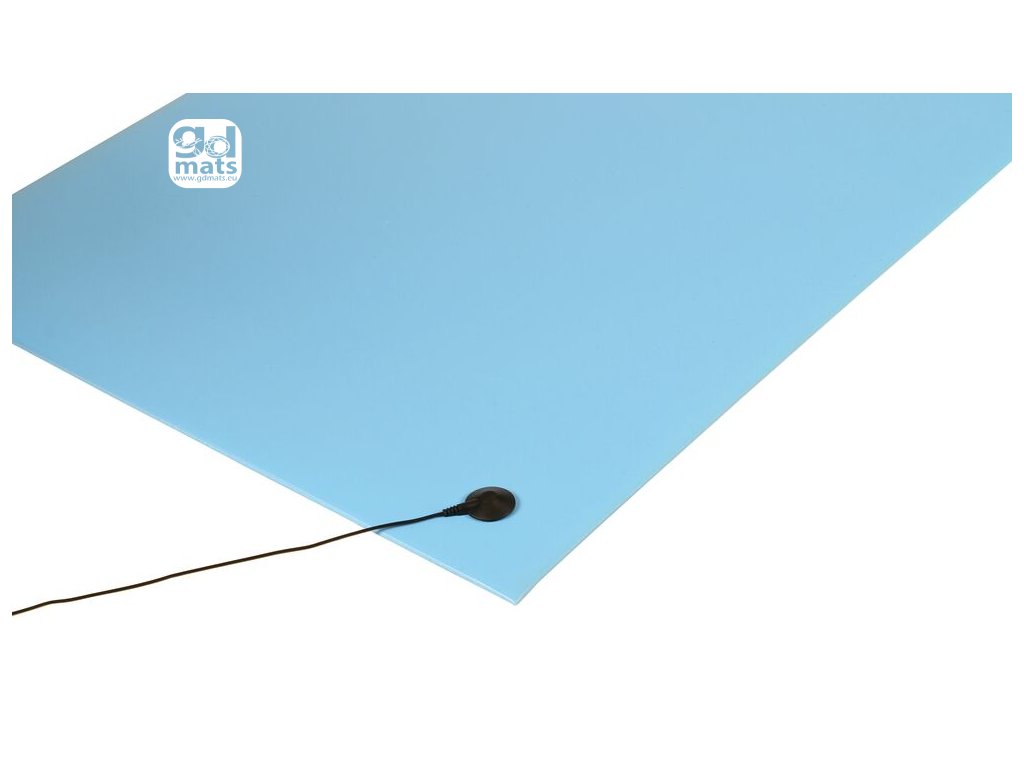

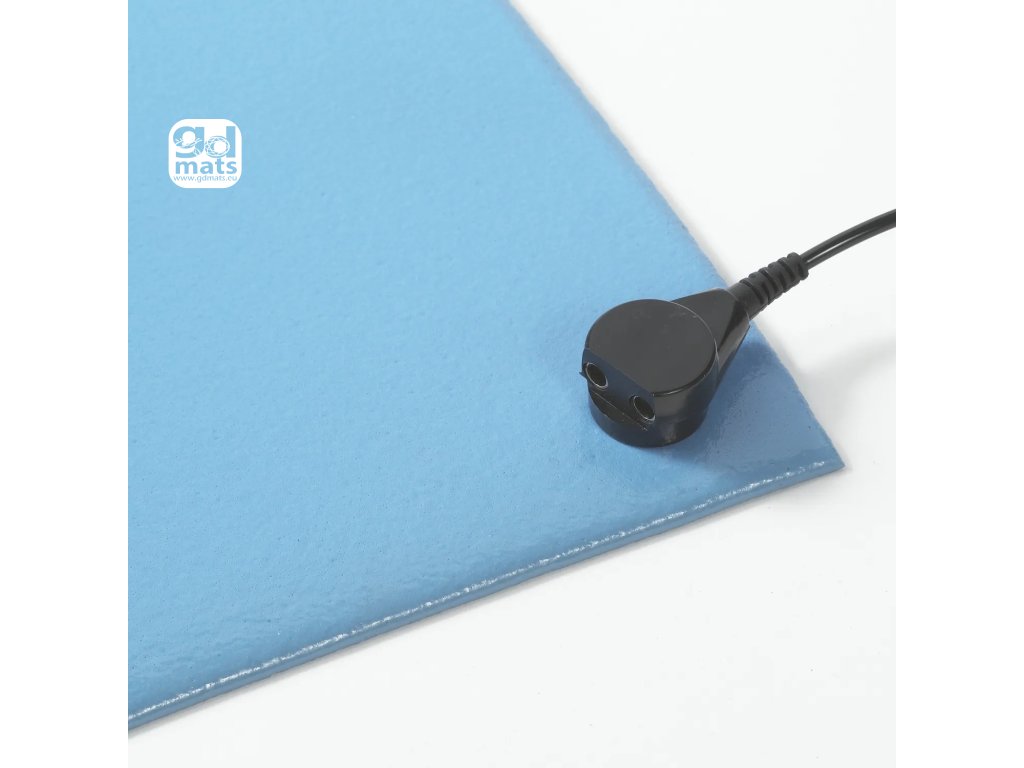

The product is intended for use in ESD work zones to protect electrostatically sensitive components. The antistatic vinyl work surface dissipates static charge from conductive objects placed on it. Protects the table and keeps sensitive components safe from damaging static discharges. The smooth top surface is resistant to abrasion and is easy to clean with the recommended cleaning agent for ESD mats (art. 057 Mat Cleaner). An optional grounding cable is available.

Main product benefits:

• Microcellular vinyl foam modified with dissipative antistatic properties
• Meets EOS/ESD-S4 standard, measured resistance Rg 10⁷ Ω and Rp 10⁸ Ω
• Electrostatic charge (walking test) meets ISO6356 and EN1815 standards
• Thickness: 6.4 mm
• Smooth work surface for precise execution of tasks
• IEC61340-4-1 (category DIF) resistance Rg 10⁶ - 10⁹ Ω
• Measured resistance: Rg 9.2 x 10⁷ Ω, Rp 1.7 x 10⁷ Ω

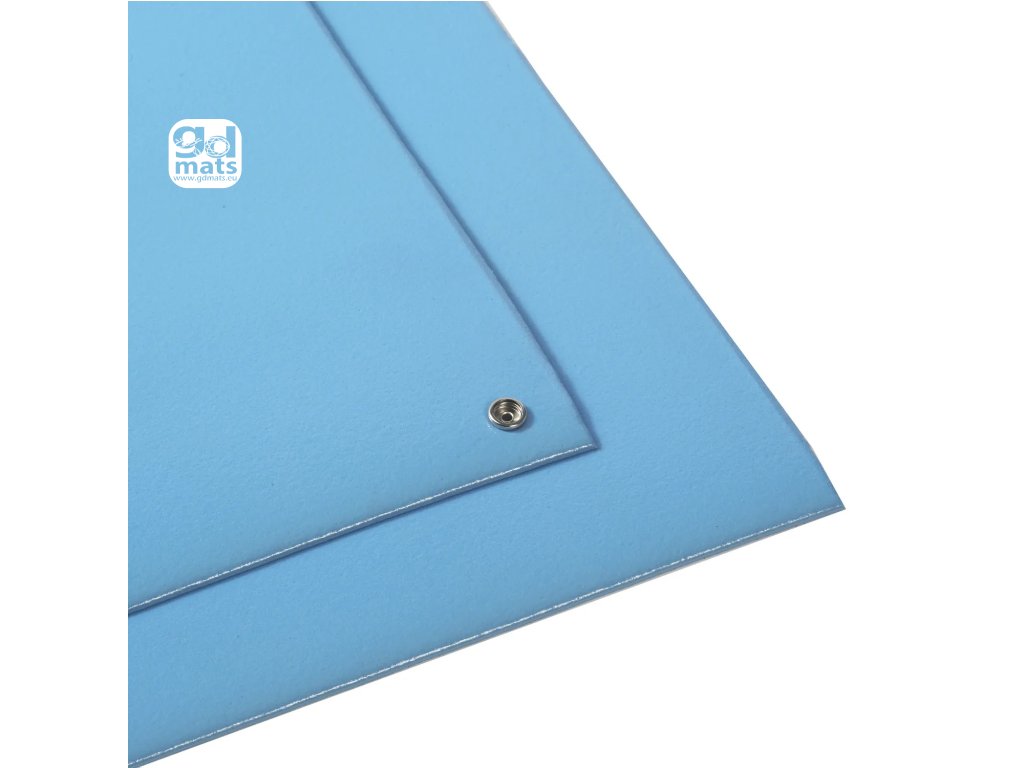

• Beveled edges on all sides for safe passage
• Fire classification: En 13501-1 C-S1

Recommended use:

• Dry spaces

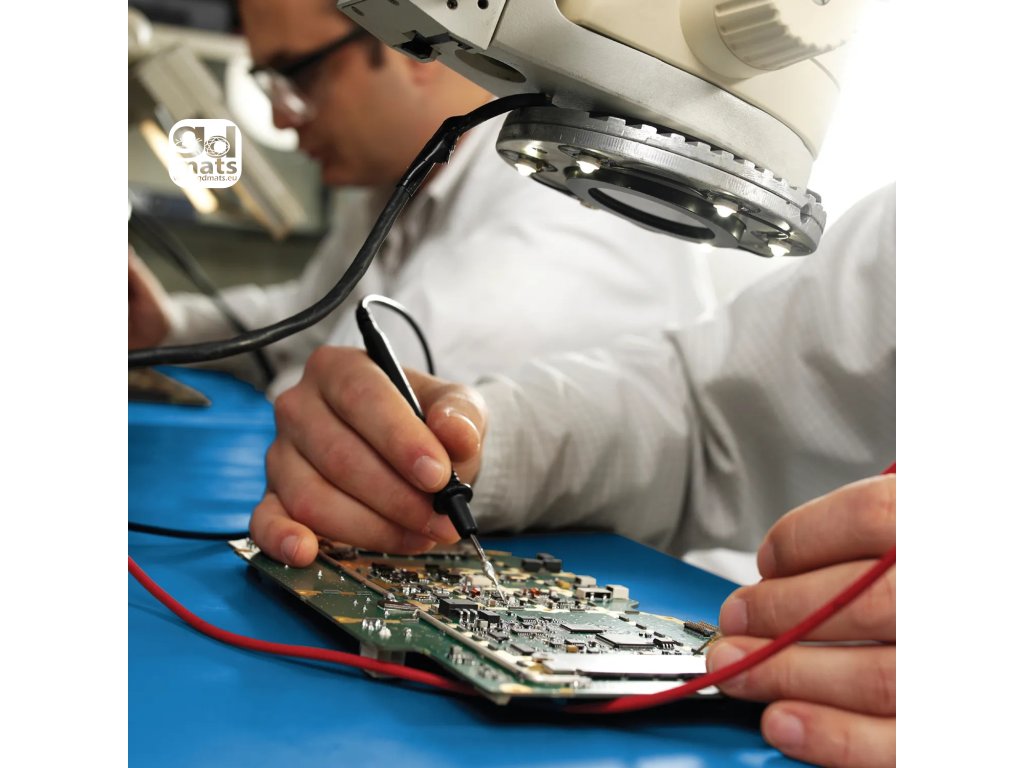

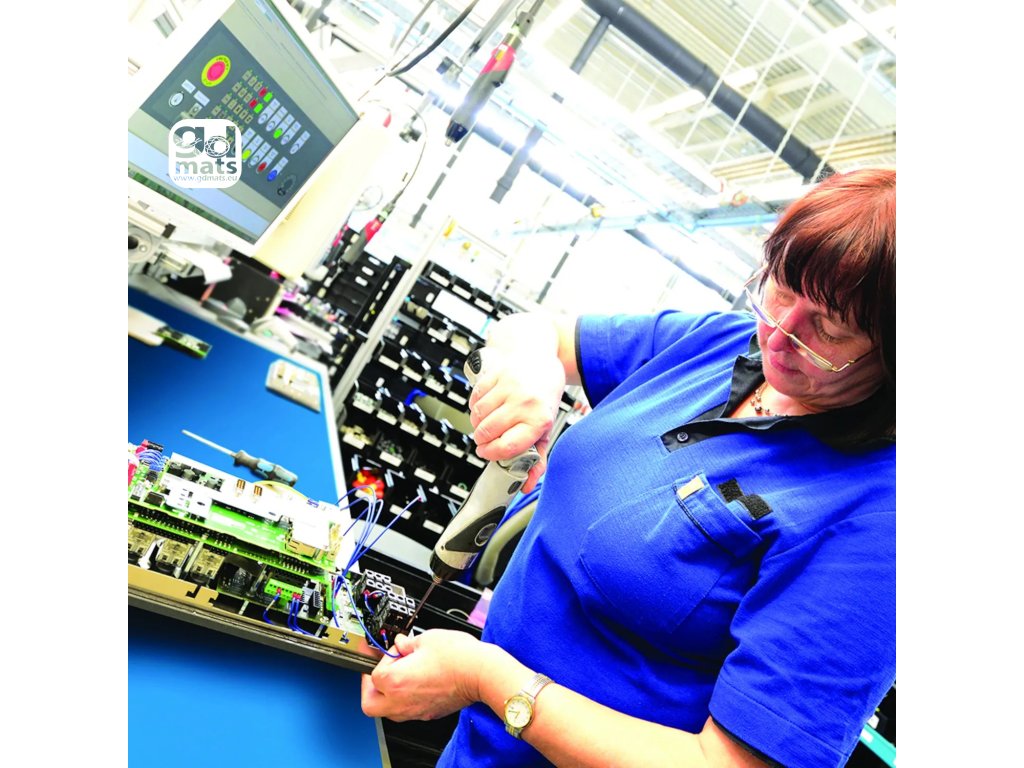

• For use in ESD work zones to protect electrostatically sensitive components
• Medium traffic

Environment:

• Dry spaces

Application:

• Industrial environments
• Electronic industry
• Production and assembly of electronic components

Intensity of use:

• Medium traffic

Cleaning and maintenance:

• The use of an ESD cleaner is recommended for antistatic table and floor mats
• Regular cleaning to maintain antistatic properties

Technical specifications:

• Material: Microcellular vinyl
• Material group: Vinyl
• Production process: Foaming
• ESD Rg: 9.2 x 10⁷ Ω
• ESD Rp: 1.7 x 10⁷ Ω
• EU fire classification: En 13501-1 C-S1
• US fire classification: Complies
• Edges: Beveled edges on all sides

Sustainability and certifications:

• REACH compliant: Yes (Registration, evaluation, authorization and restriction of chemicals)
• RoHS compliant: Yes (Restriction of hazardous substances)
• Sustainability: Recyclable material
• Warranty: 1 year

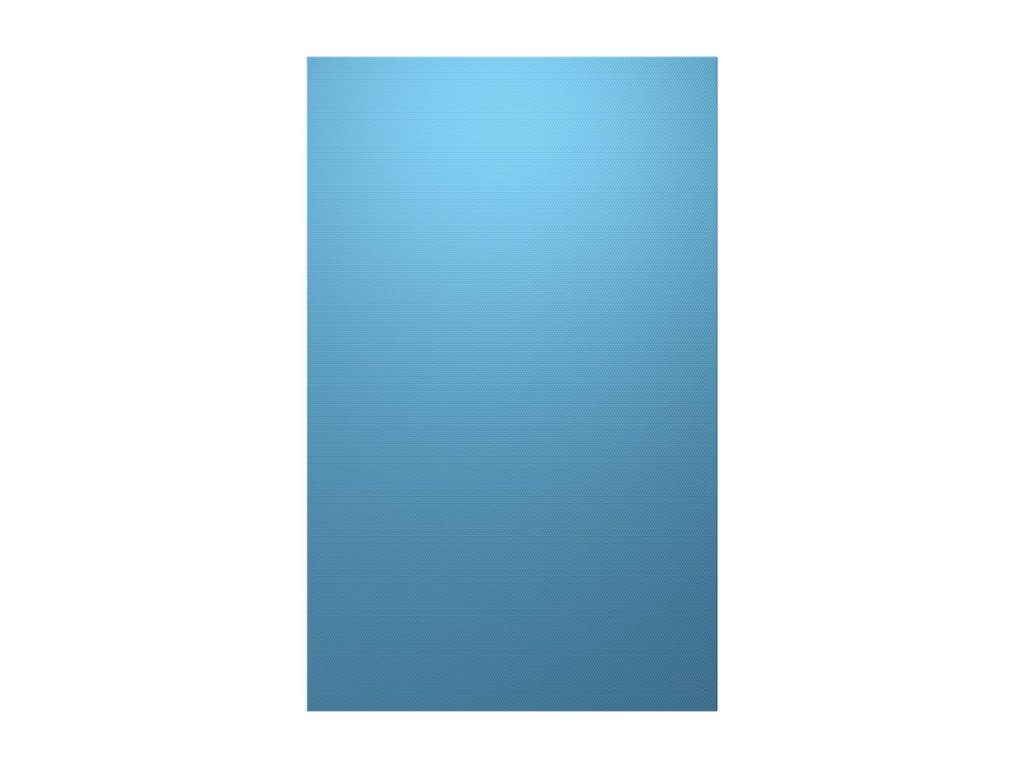

Available colors:

• Blue

Available sizes:

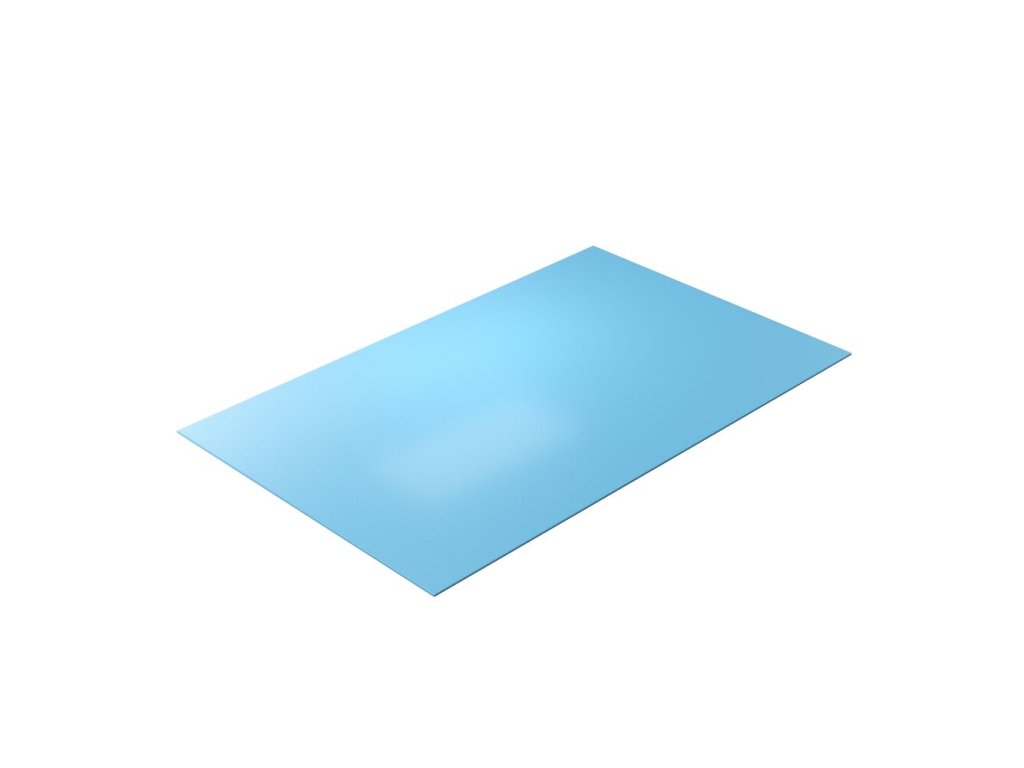

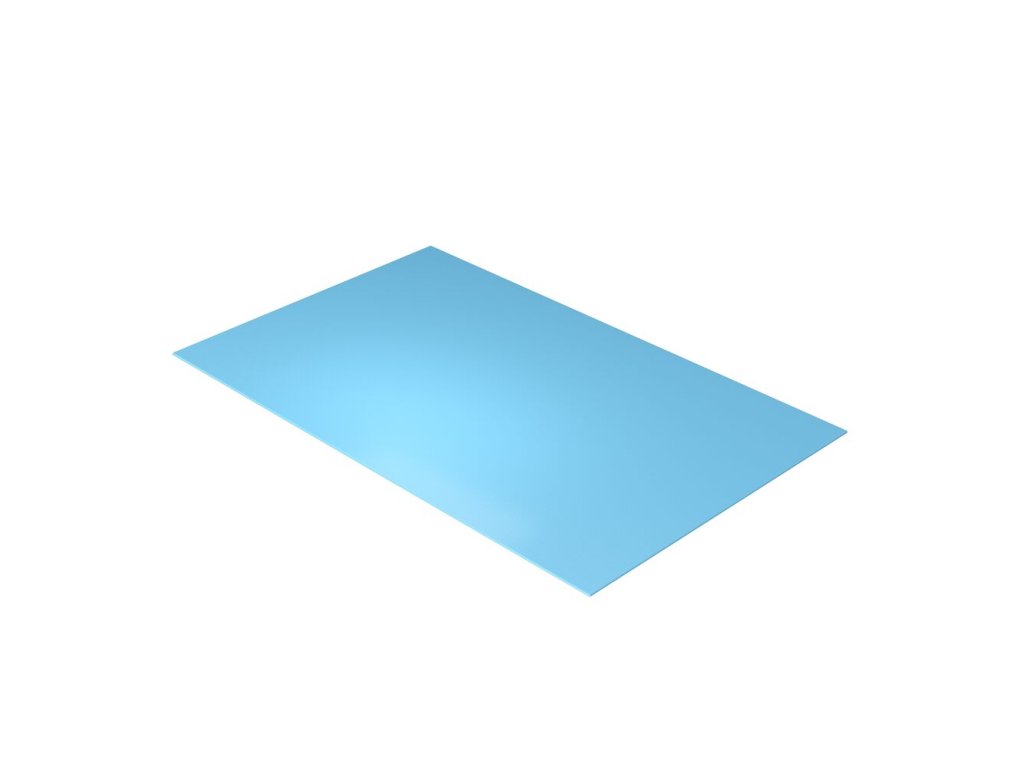

• 60 cm x 1 bm (order no. 827C0024BU) - 2 kg, thickness 6.4 mm
• 76 cm x 1 bm (order no. 827C0030BU) - 2.95 kg, thickness 6.4 mm
• 91 cm x 1 bm (order no. 827C0036BU) - 3.4 kg, thickness 6.4 mm

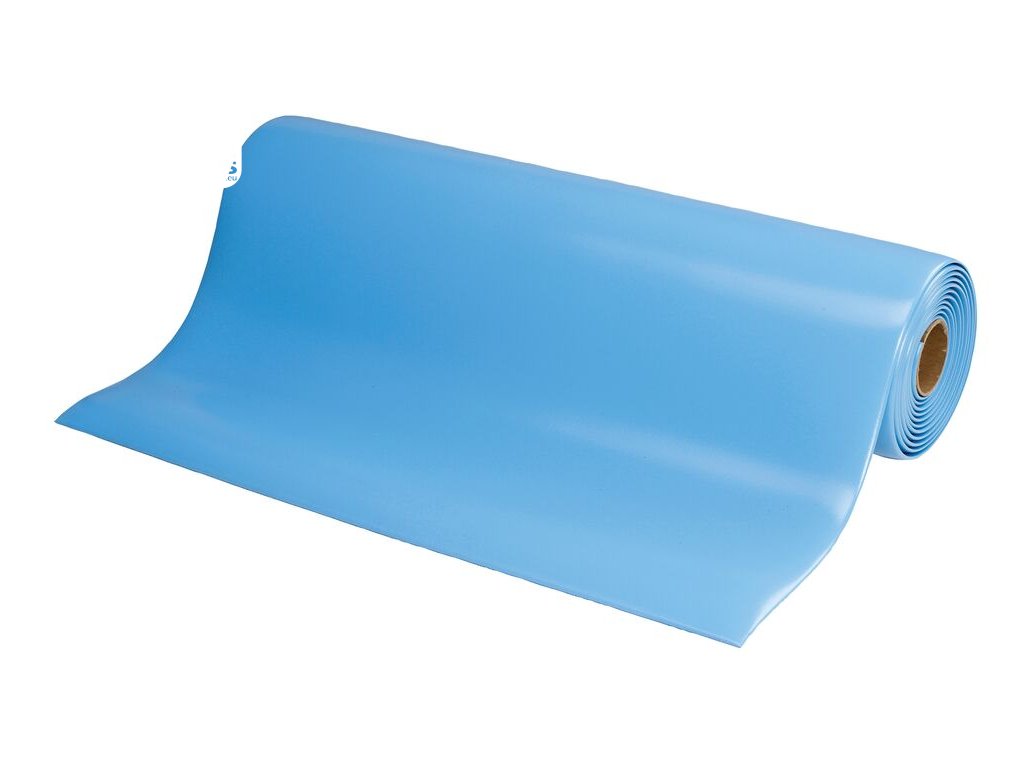

• 60 cm x 12.2 m (order no. 827R2440BU) - 28 kg, thickness 6.4 mm
• 76 cm x 12.2 m (order no. 827R3040BU) - 36 kg, thickness 6.4 mm
• 91 cm x 12.2 m (order no. 827R3640BU) - 42 kg, thickness 6.4 mm

Accessories:

• 825-C
• 057 ESD mat cleaner
• 056 ESD wrist strap
• 052 ESD common ground cable
• 055 ESD heel grounding device
• 051 ESD floor grounding cable
• 054 ESD earthing plug
• 053 ESD spiral cable
