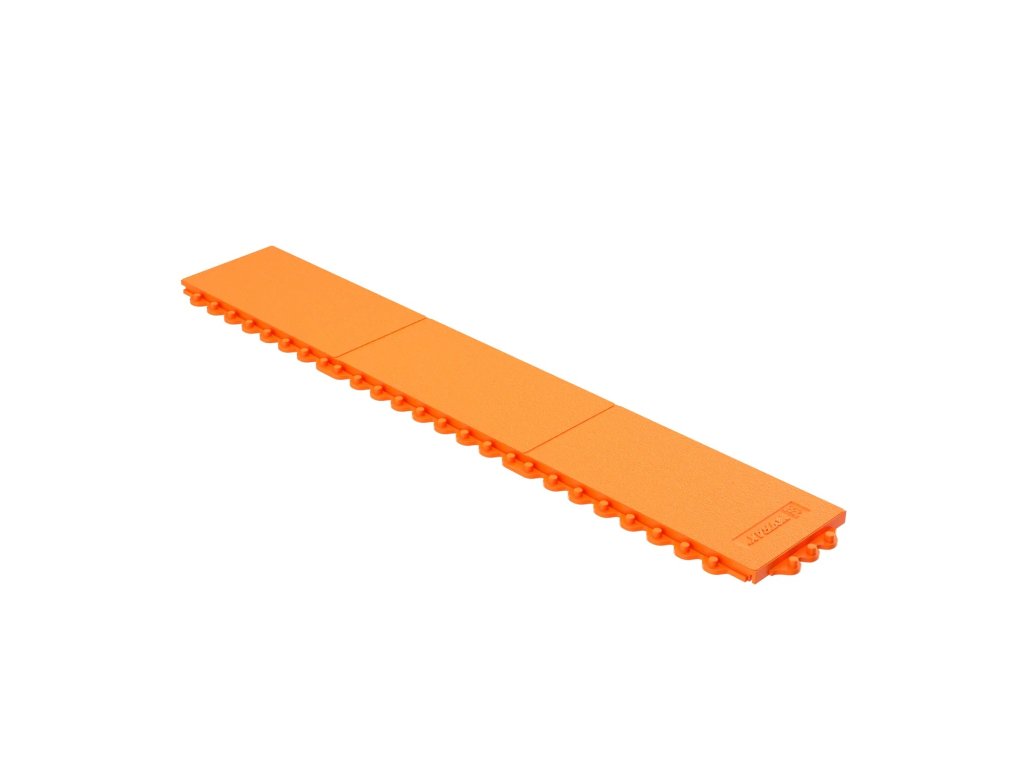

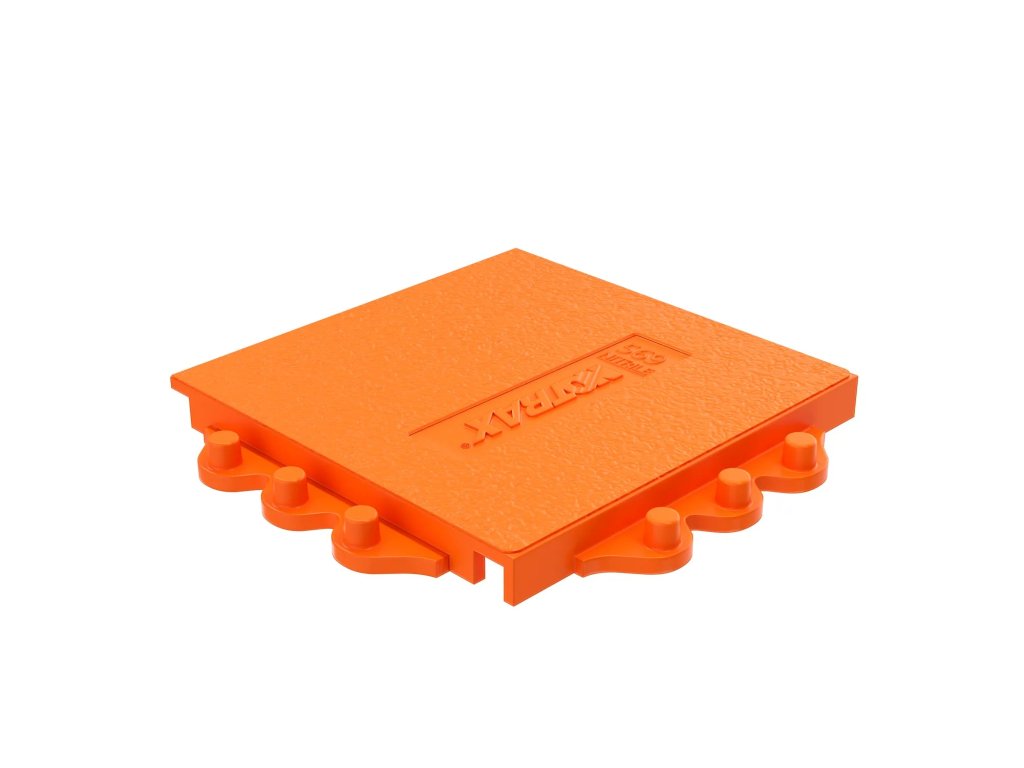

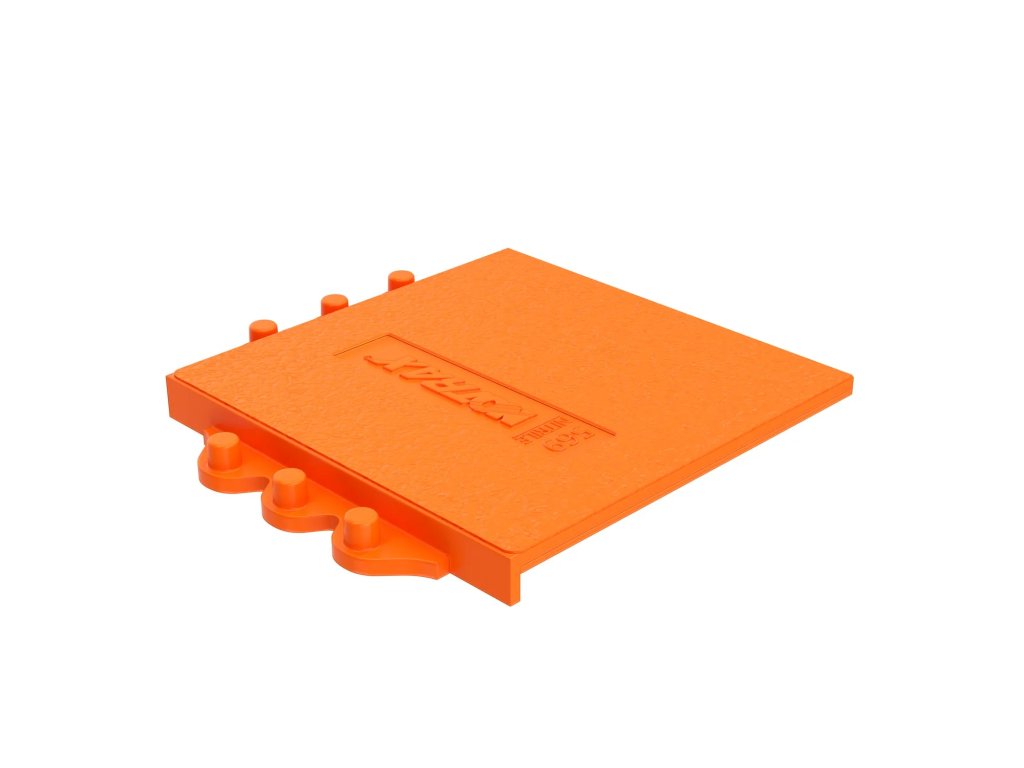

569 Cushion Ease Solid™ Nitrile Marking Line - 5S modular marking line - orange

569 Cushion Ease Solid™ Nitrile Marking Line

Product description: Durable 10cm x 91cm rubber tiles that can be easily assembled for 5S implementation in production areas. It simplifies the marking of aisles, traffic lanes, work cells and material warehouses. The ergonomic benefit is based on a 19 mm thick work platform with a closed non-slip surface with a pebble pattern for maximum anti-fatigue comfort in dry industrial environments. Anti-slip rating R9 according to DIN 51130.

Main product benefits:

• 5S marking line compatible with Cushion Ease and Safety Stance series
• Anti-slip surface with pebble pattern with R9 rating
• Designed for heavy industrial operation
• Oil resistance

Recommended use: For placement in manufacturing plants, production lines, assembly lines, CNC machines, metalworking operations for individual workplaces and customized work platforms

Environment: Dry zones

Application: Industrial environments

Intensity of use: Heavy traffic

Cleaning and maintenance: Rinse with water. Sweep or wipe the surface and back of the mat regularly with a dry mop. The surface can be wiped with a damp cloth with a mild soap/detergent.

Technical specifications:

• Material: 100% nitrile rubber
• Thickness: 19 mm
• Weight: 1.1 kg
• Abrasion resistance: 1.50% weight loss (5000 cycles)
• Compression at 1.4 strain: 37.0 lb/in² (at 25%)
• Compression at warp 2.8: 98.9 lb/in² (at 50%)
• Dry friction coefficient: 0.88
• Surface flammability: passes
• Temperature range: - 40 °C to + 120 °C

Sustainability and certifications:

• REACH compliant (Registration, Evaluation, Authorization and Restriction of Chemicals)
• Warranty: 1 year

Available colors:

• Yellow

Available sizes:

• 10cm x 91cm (order no. 569S0003YL)

Accessories:

• 552 MD-X Ramp System™ Nitrile
• 656SG Cushion Ease Solid™ Nitrile 5S
• 656S Cushion Ease Solid™ Nitrile
• 551 MD Ramp System™ Nitrile
• 556 Cushion Ease Solid™
