479 Cushion Trax - Anti-fatigue mat with diamond pattern - Black

479 Cushion Trax® - The Best Selling Diamond Pattern Anti-Fatigue Mat

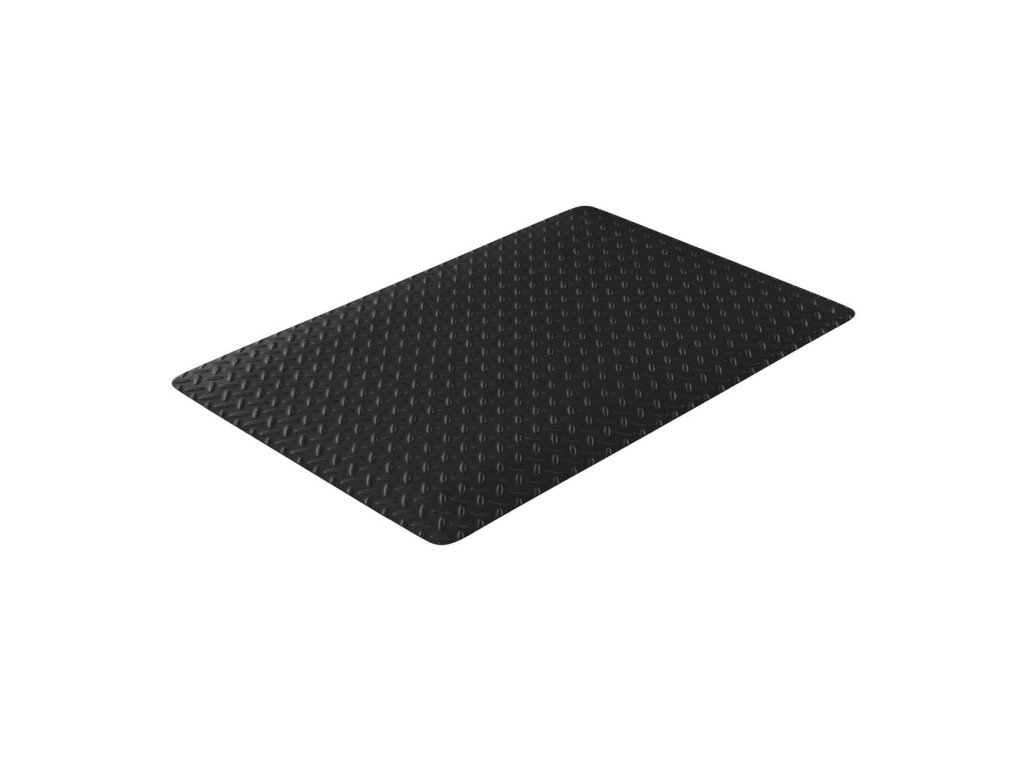

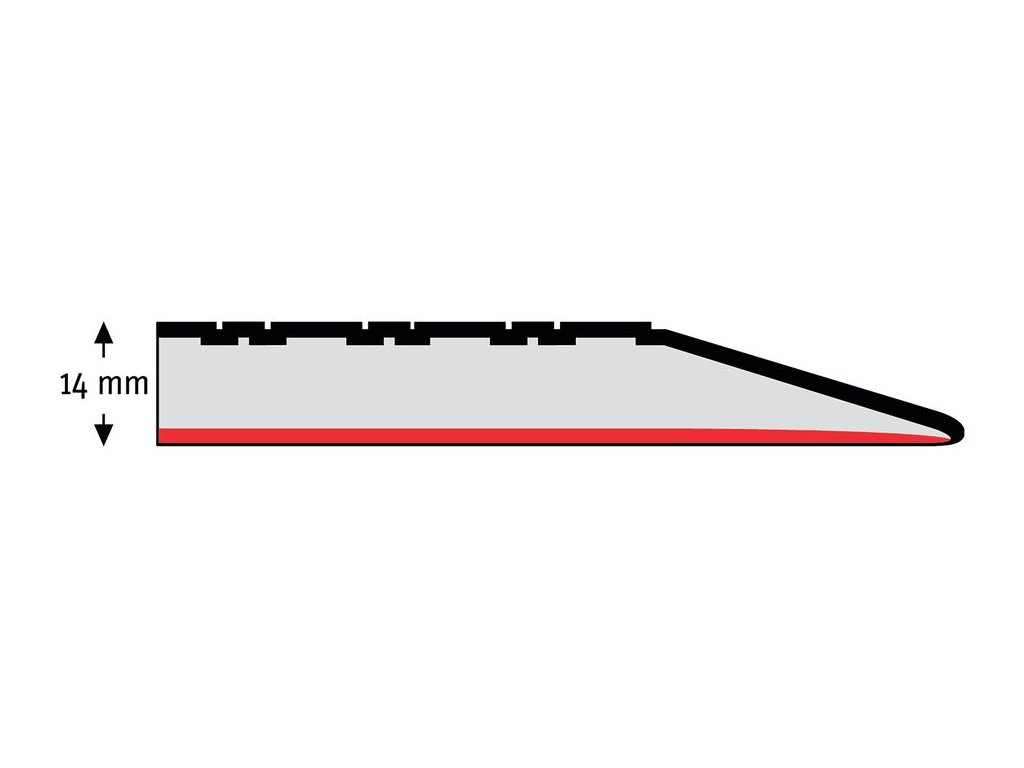

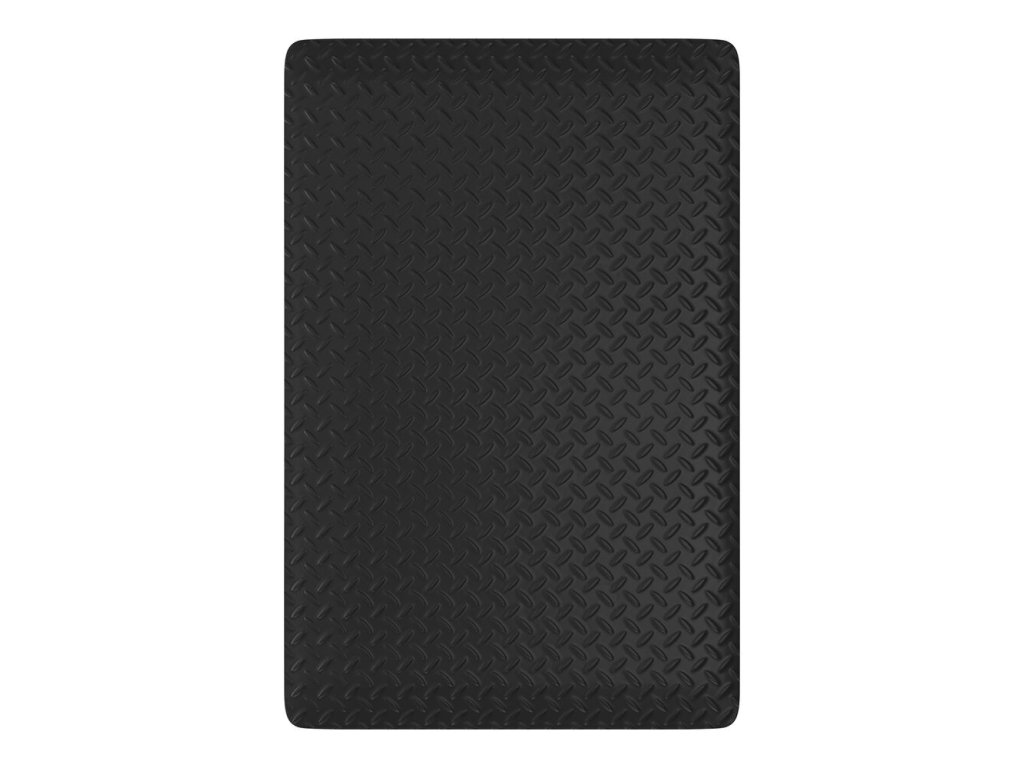

Cushion Trax® 479 is the best-selling anti-fatigue mat with an ergonomic benefit thanks to a 14 mm thick work platform formed by a durable top surface laminated to a flexible microcellular vinyl base. It provides maximum durability, comfort and isolation from hard floors and vibrations. The diamond pattern ensures excellent traction and at the same time enables easy turning movements. The design and material composition make this mat the most versatile solution for reducing fatigue in both static and dynamic work positions.

Main product benefits:

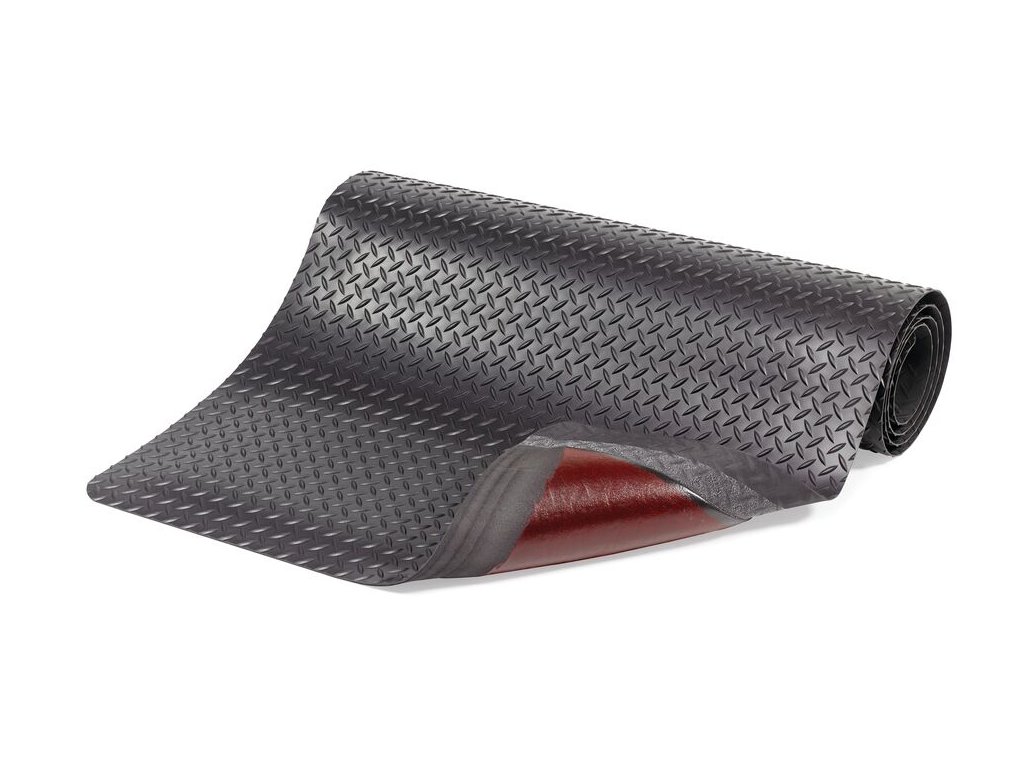

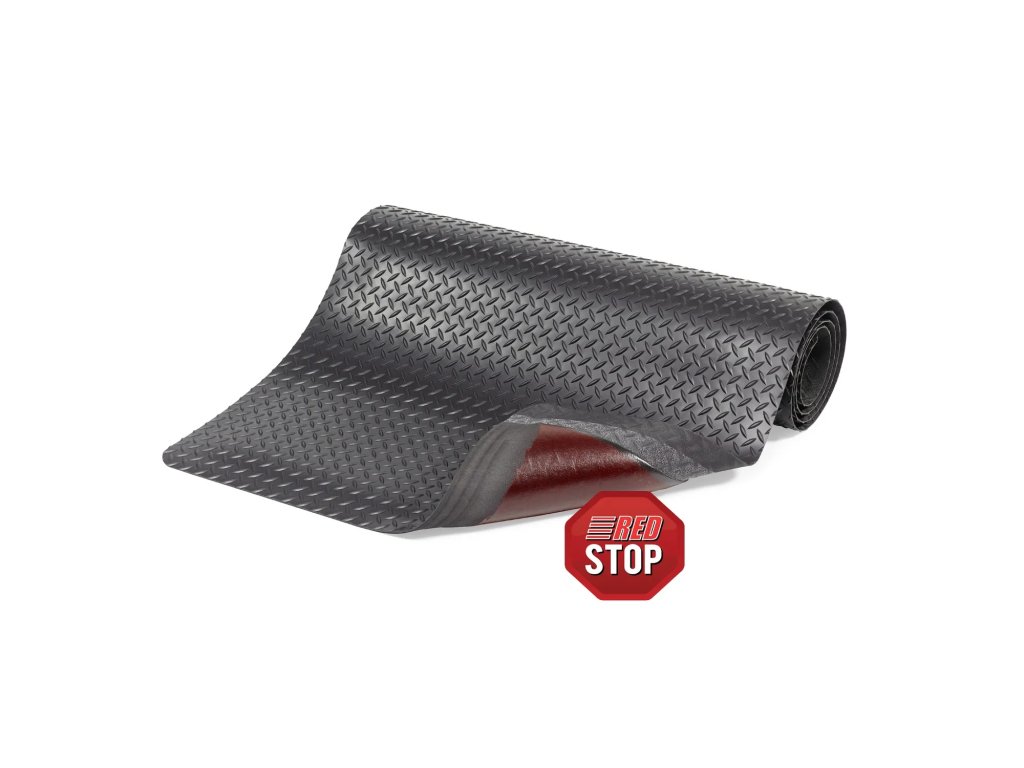

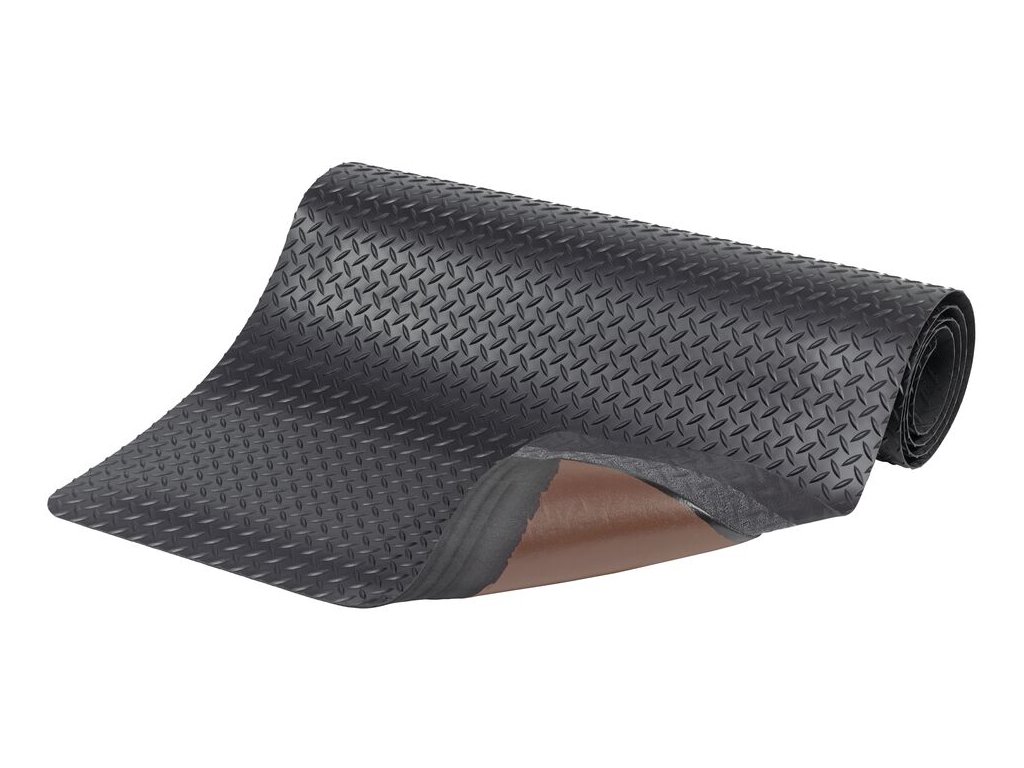

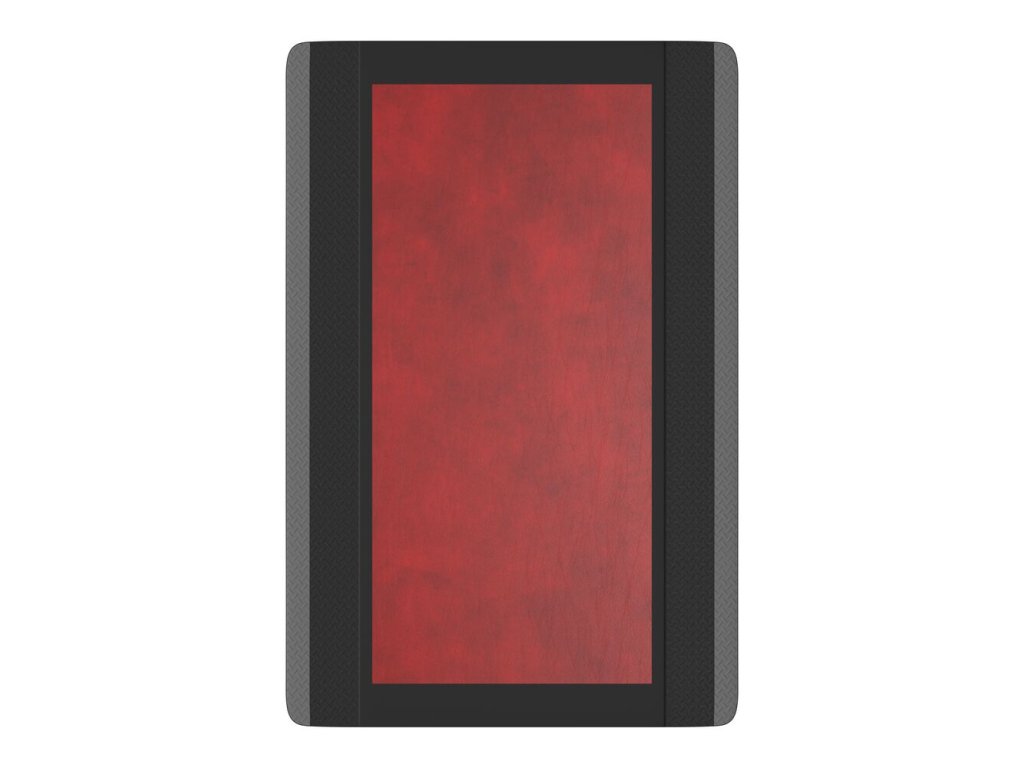

• Equipped with a non-slip RedStop™ backing that prevents the mat from sliding
• Available with yellow safety edges in accordance with OSHA 1910-144

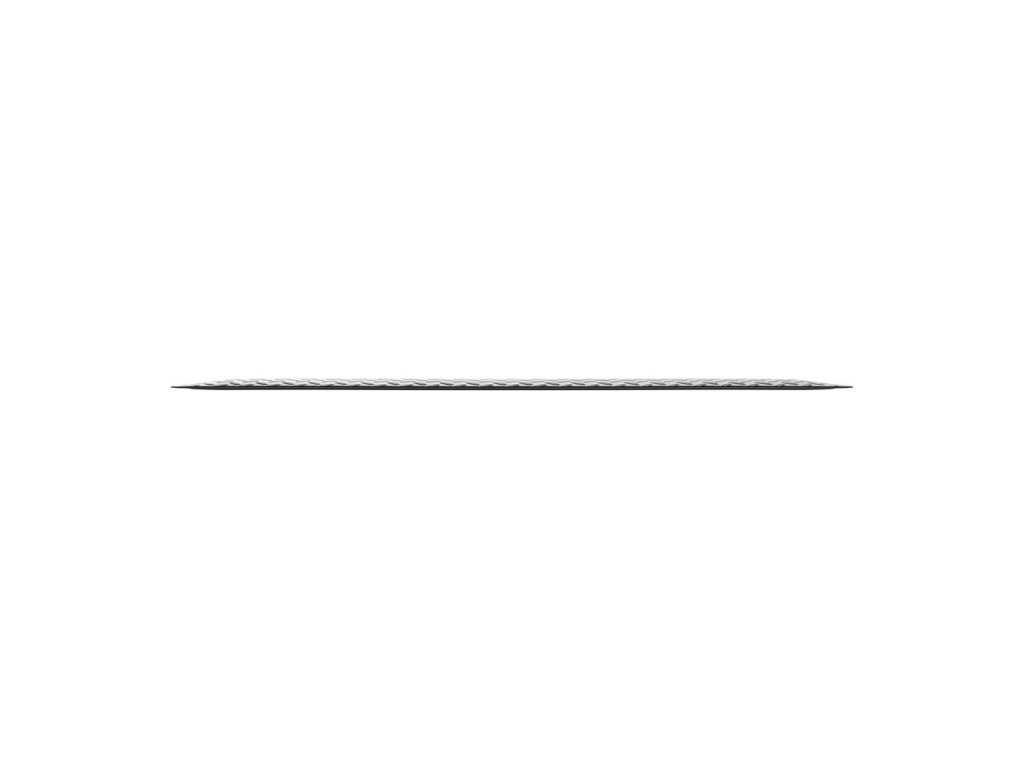

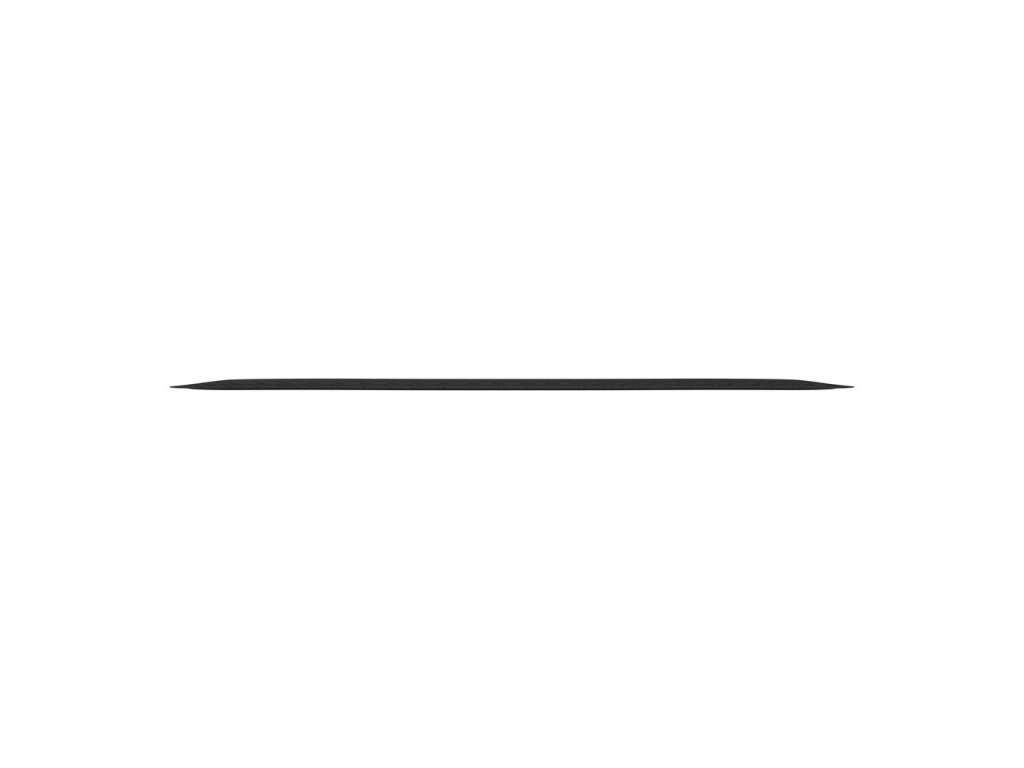

• Beveled edges on all four sides minimize the risk of tripping

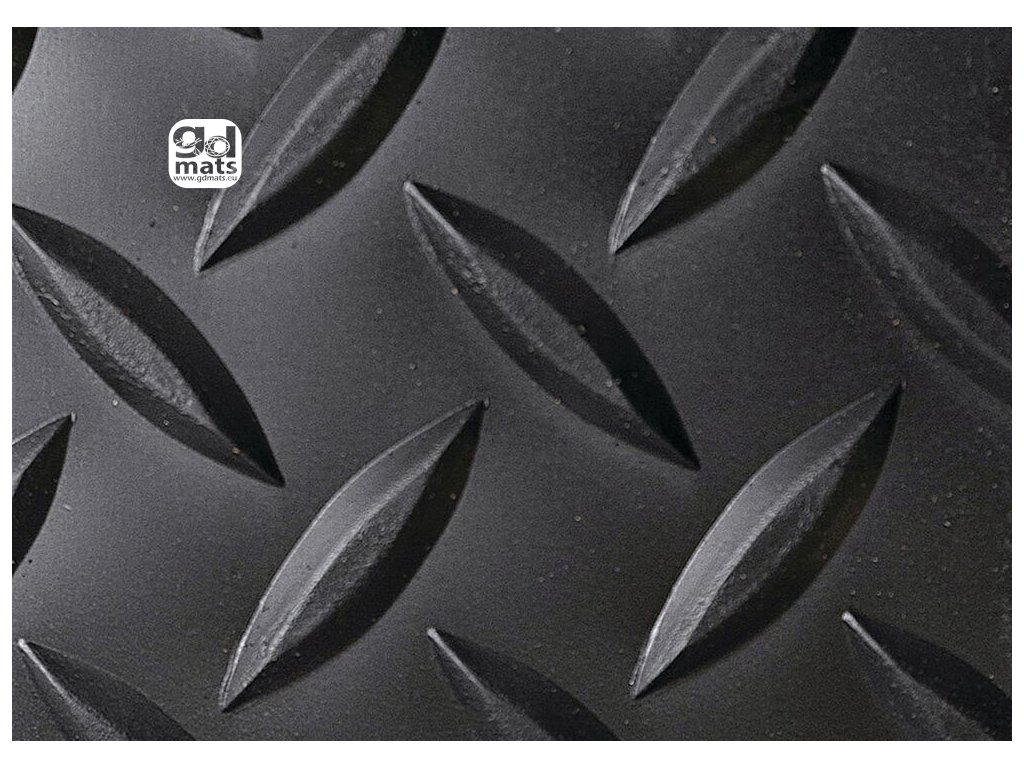

• Diamond pattern provides excellent traction while allowing easy turning movements
• UniFusion™ technology durable and in the most demanding work environments
• R10 slip resistance according to DIN51130 and BG rule BGR181
• Tested and certified by the National Floor Safety Institute (NFSI)
• Top surface contains 60-70% recycled PVC
• 14 mm thickness ensures superior cushioning and comfort
• Available in black, gray and black-yellow color combination

Recommended use:

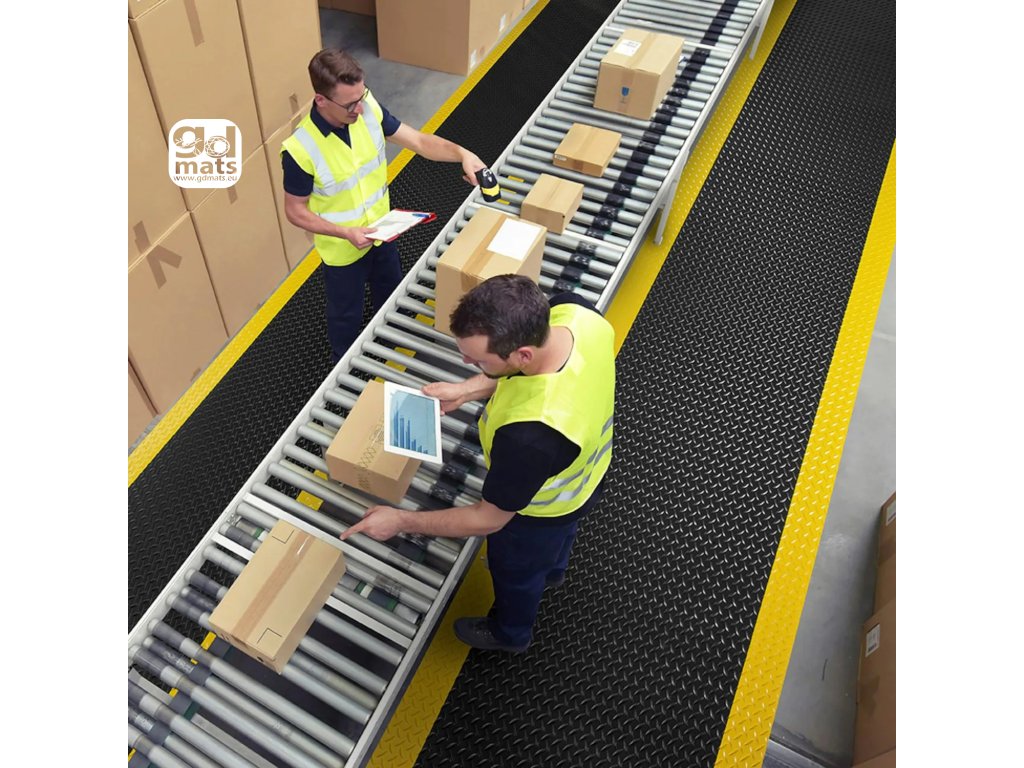

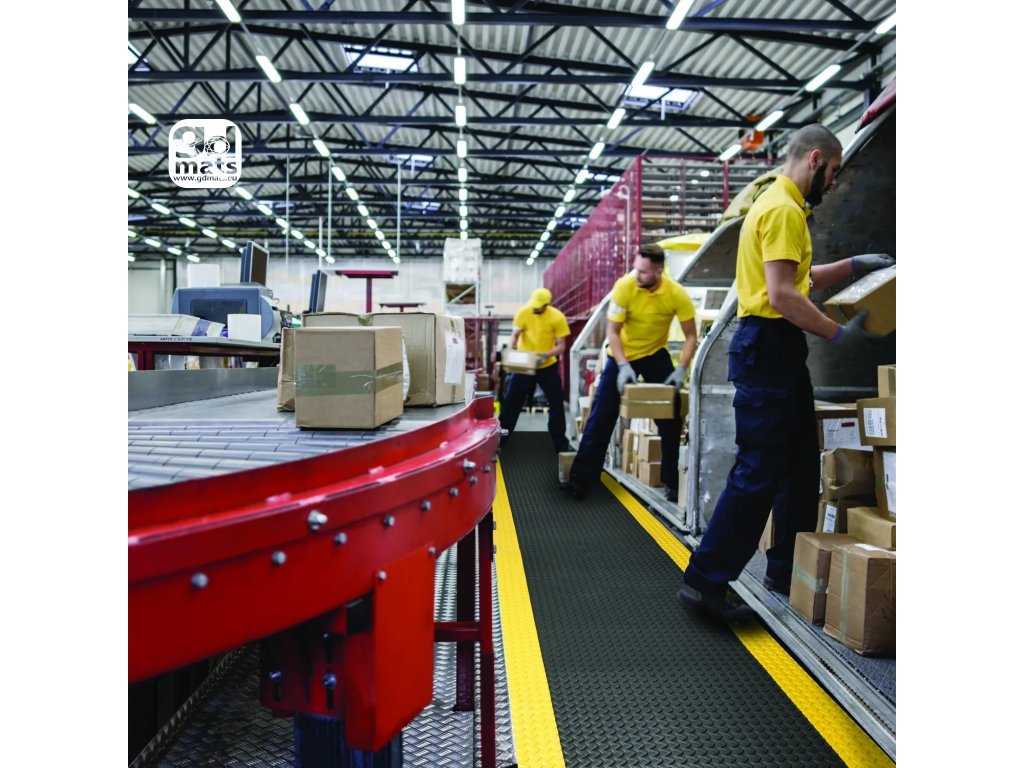

Suitable for manufacturing plants, assembly lines, when assembling and packing goods, in logistics warehouses and at individual workstations. Also suitable for commercial environments including hotels, reception desks, sales desks, department stores, banks, restaurants, etc.

Environment: Dry areas

Application: Industrial environments

Intensity of use: High load

Product Value:
Cushion Trax® helps reduce employee absenteeism and increase productivity by providing a comfortable and safe work platform, unlike uncomfortable hard concrete floors, cardboard that is slippery when wet and can move on smooth surfaces, or wood that can become damaged and cause further injuries.

Cleaning and maintenance:
• Daily sweeping with a brush
• Regular sweeping or dry wiping of the surface
• The surface can be wiped wet with a mild soap/detergent

Technical specifications:
• Material: PVC with microcellular vinyl base
• Manufacturing process: Lamination
• Thickness: 14 mm
• Abrasion resistance: 0.41% weight loss (1000 cycles), 0.34% weight loss (500 cycles)
• Compression under load: 0.43 cm (1.4), 0.60 cm (2.8)
• Tear Strength: 34 lb
• Load Capacity: 55 lb
• Hardness: 85 Shore A
• Coefficient of Dry Friction: 0.81
• EU Fire Rating: EN 13501-1 B-S1
• US Fire Rating: Pass
• Surface Fire Resistance: Pass
• Foam Battery: 40 lb/in²
• Elongation: 62.60%

Sustainability:
• Meets REACH (Registration, Evaluation, Authorization and Restriction of Chemicals)
• Meets RoHS (Restriction of Hazardous Substances)
• Top surface contains 60-70% recycled PVC
• Warranty: 3 years

Available colors:
• Black
• Grey
• Black-yellow (safety marking)

Available dimensions:

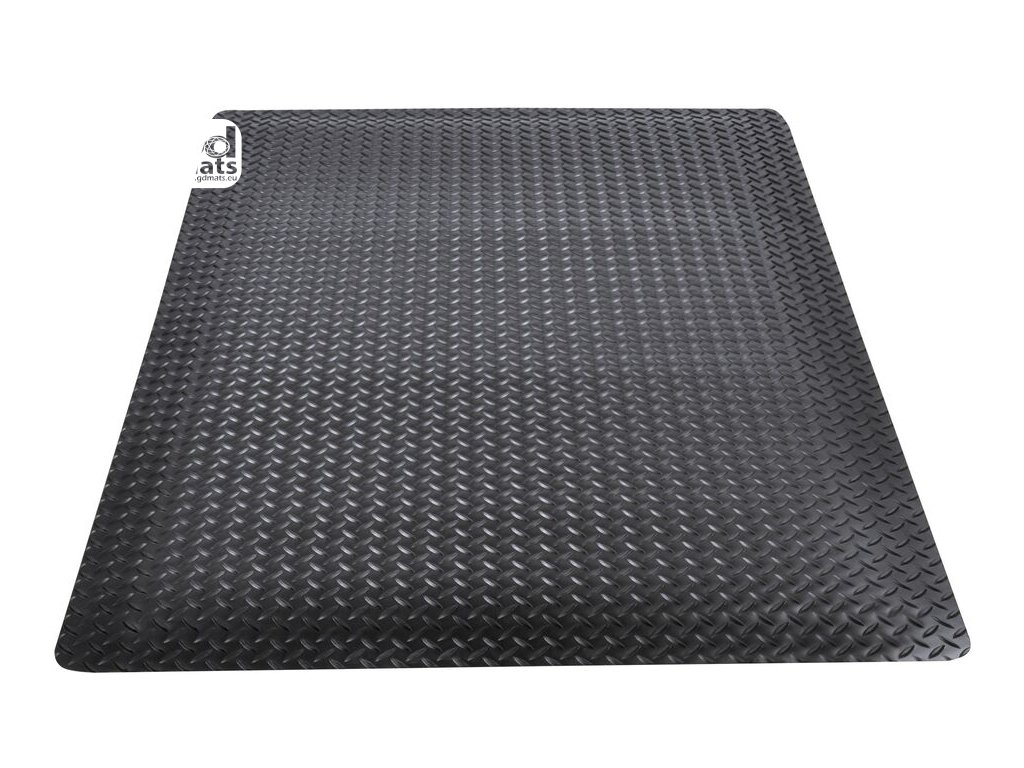

Cushion Trax® Black:

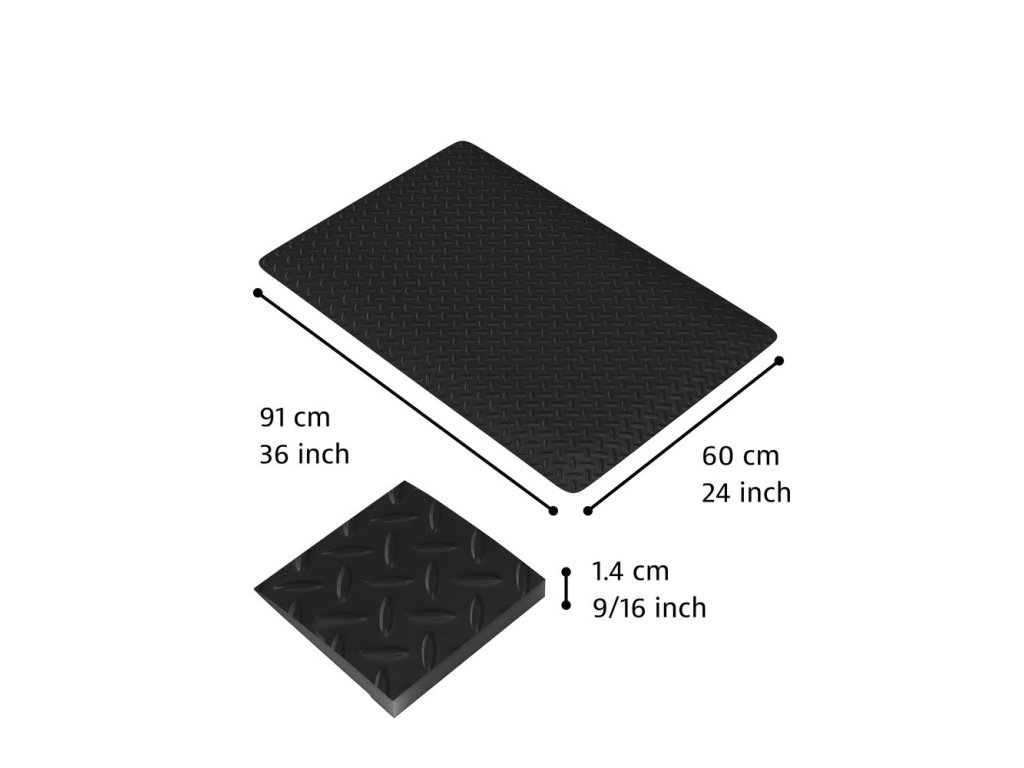

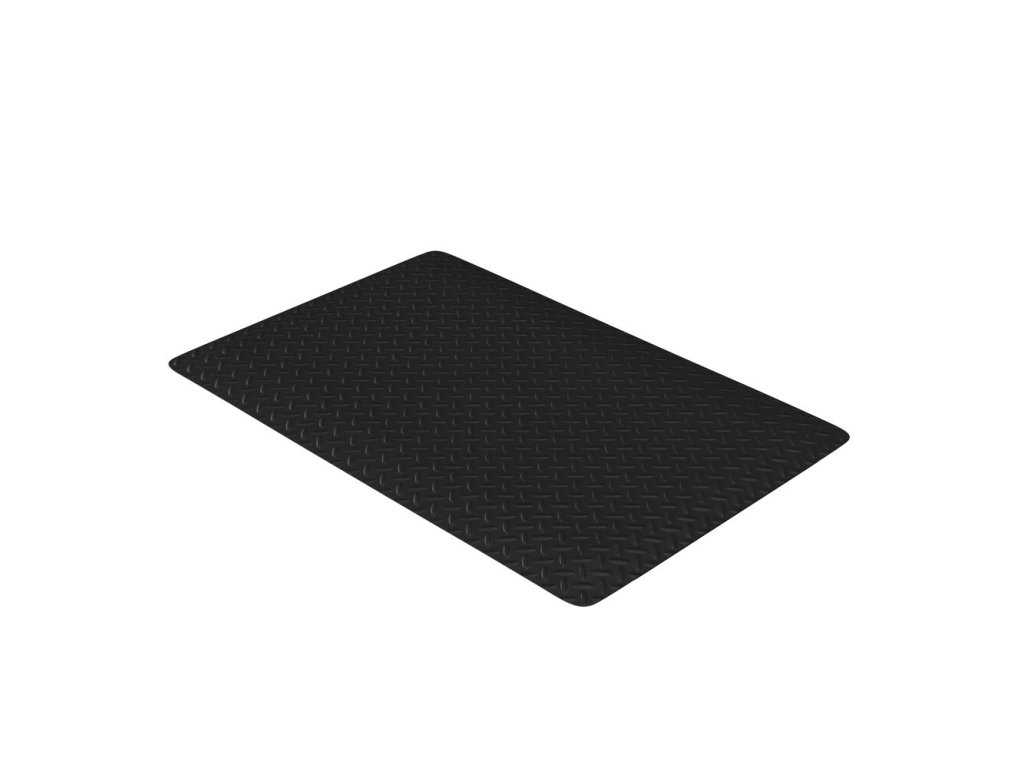

• 60 cm x 91 cm (order no. 479S0023BL)

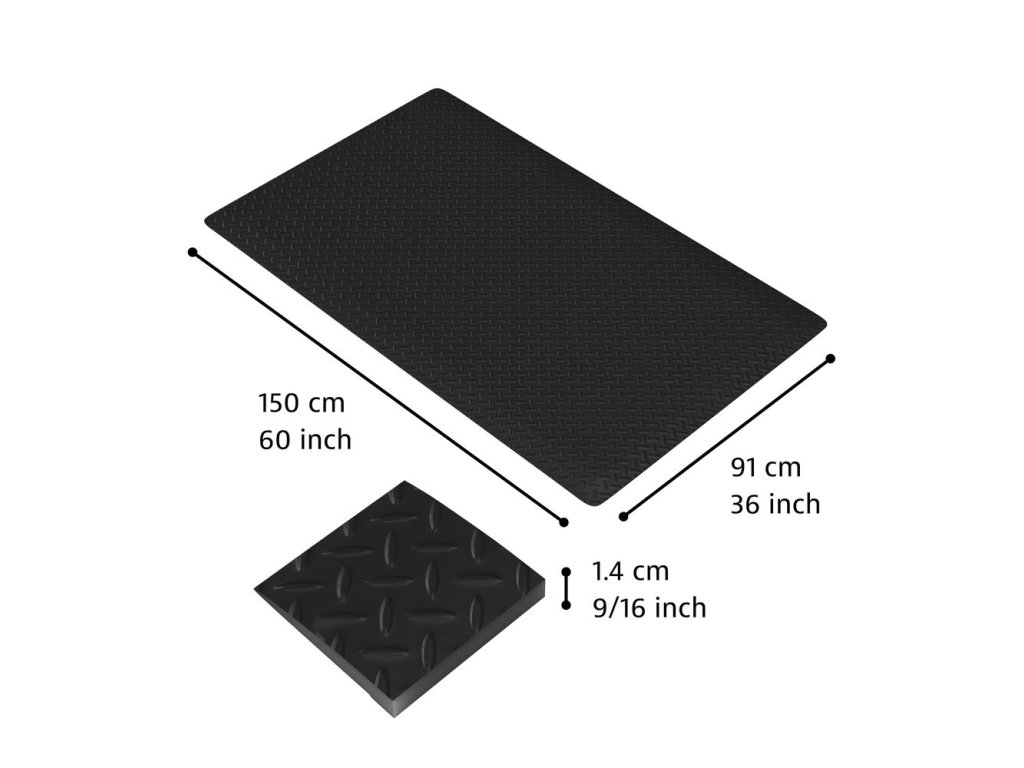

• 91 cm x 150 cm (order no. 479S0035BL)

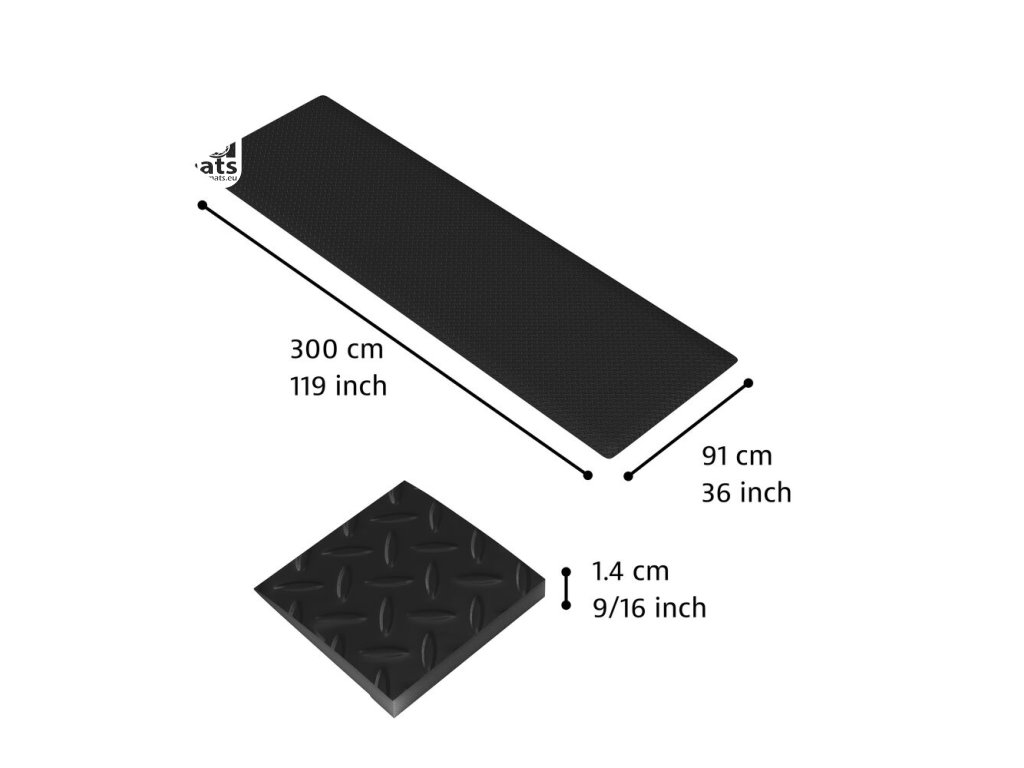

• 91 cm x 300 cm (order no. 479S303MBL)

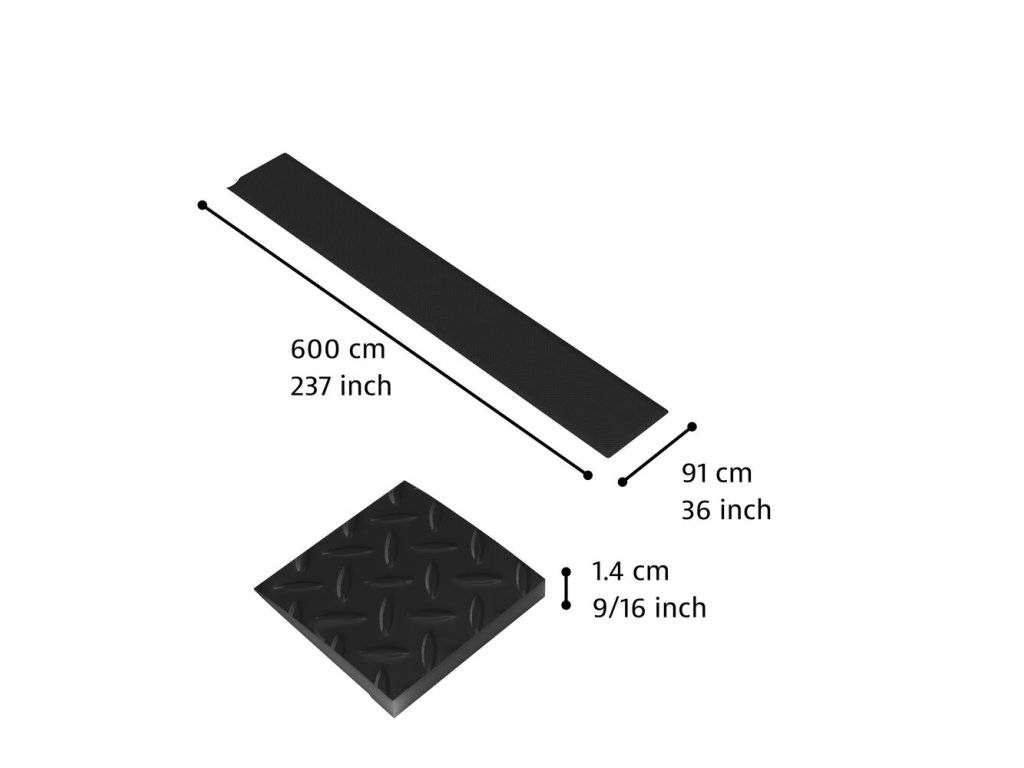

• 91 cm x 600 cm (order no. 479S306MBL)

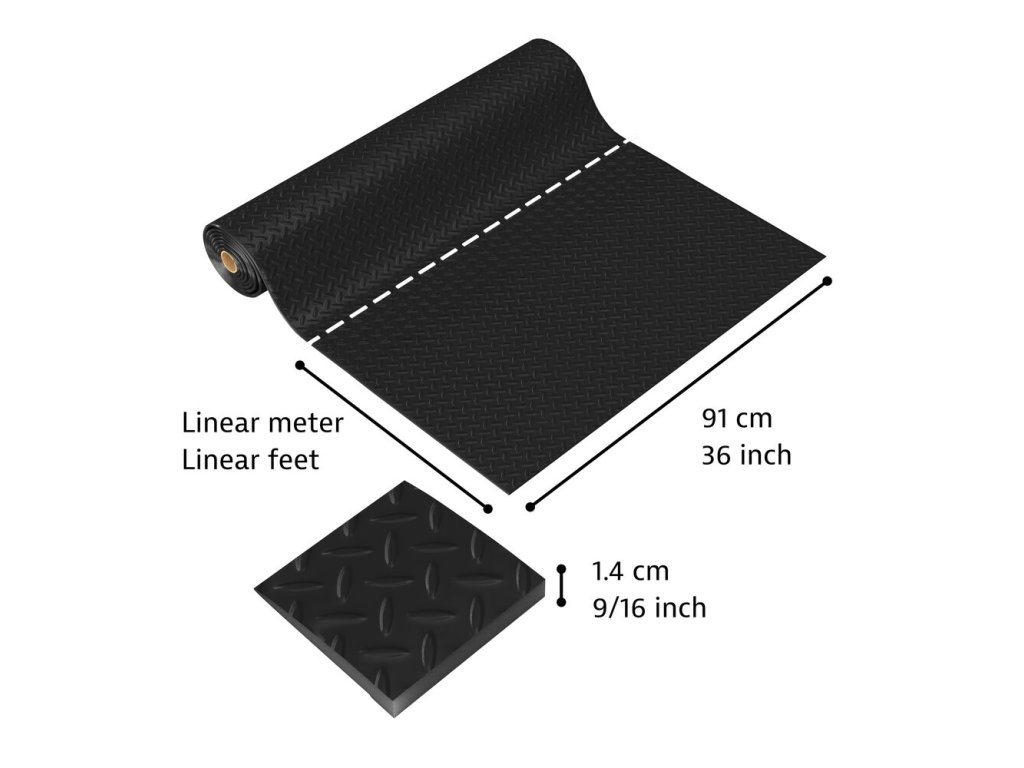

• 60 cm x standard meter (order no. 479C0024BL)
• 91 cm x standard meter (order no. 479C0036BL)
• 122 cm x standard meter (order no. 479C0048BL)
• 152 cm x regular meter (order no. 479C0060BL)

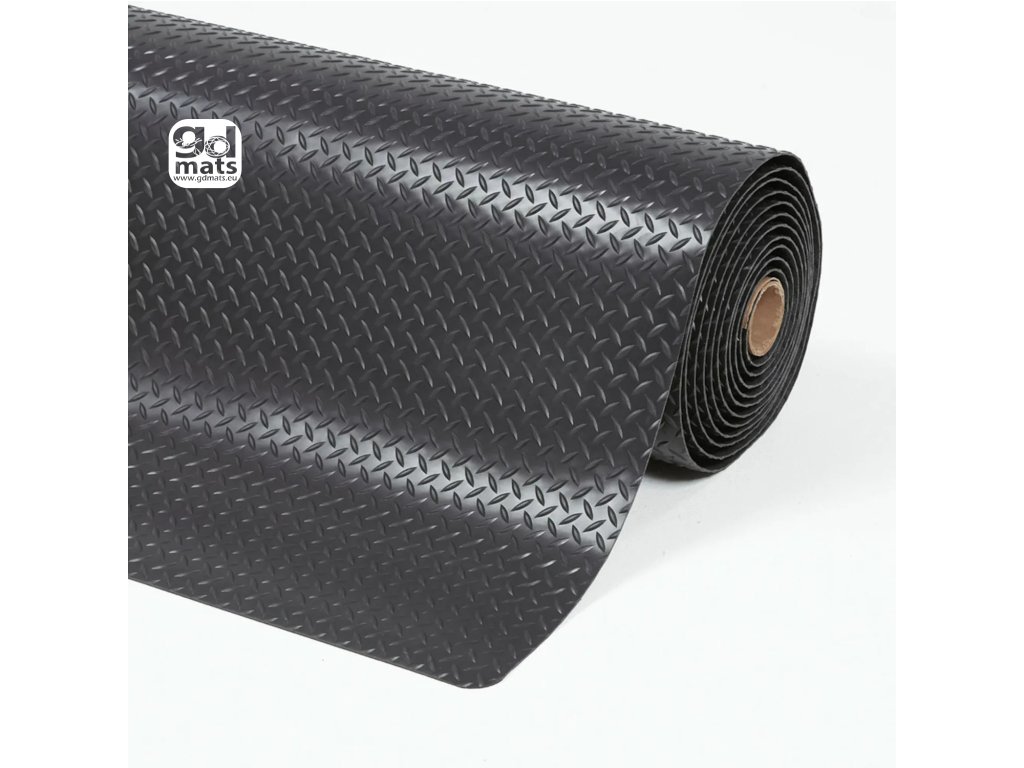

• 60 cm x 22.8 m (order no. 479R2475BL)

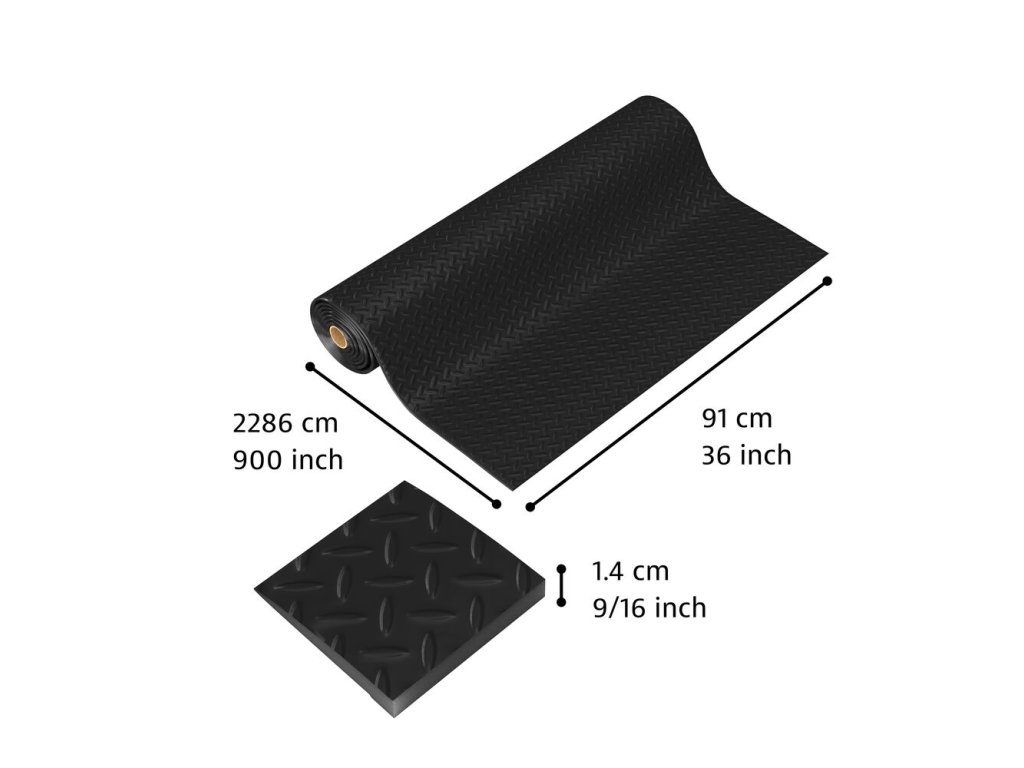

• 91 cm x 22.8 m (order no. 479R3675BL)
• 122 cm x 22.8 m (order no. 479R4875BL)
• 152 cm x 22.8 m (order no. 479R6075BL)

Cushion Trax® Grey:
• 60 cm x 91 cm (order no. 479S0023GY)
• 91 cm x 150 cm (order no. 479S0035GY)
• 91 cm x 300 cm (order no. 479S303MGY)
• 91 cm x 150 cm (order no. 479S0035GY)
600 cm (order no. 479S306MGY)
• 60 cm x standard meter (order no. 479C0024GY)
• 91 cm x standard meter (order no. 479C0036GY)
• 122 cm x standard meter (order no. 479C0048GY)
• 60 cm x 22.8 m (order no. 479R2475GY)
• 91 cm x 22.8 m (order no. 479R3675GY)
• 122 cm x 22.8 m (order no. 479R4875GY)

Cushion Trax® Black-Yellow:
• 60 cm x 91 cm (order no. 479S0023YB)
• 91 cm x 150 cm (order no. 479S0035YB)
• 91 cm x 300 cm (order no. 479S303MYB)
• 91 cm x 600 cm (order no. 479S306MYB)
• 60 cm x standard meter (order no. 479C0024YB)
• 91 cm x standard meter (order no. 479C0036YB)
• 122 cm x standard meter (order no. 479C0048YB)
• 152 cm x regular meter (order no. 479C0060YB)
• 60 cm x 22.8 m (order no. 479R2475YB)
• 91 cm x 22.8 m (order no. 479R3675YB)
• 122 cm x 22.8 m (order no. 479R4875YB)
• 152 cm x 22.8 m (order no. 479R6075YB)

The Cushion Trax® 479 mat is designed for industrial and commercial use, where it provides a safe and comfortable solution for workers who need to stand for long periods of time in one place, increasing their productivity and reducing fatigue.
