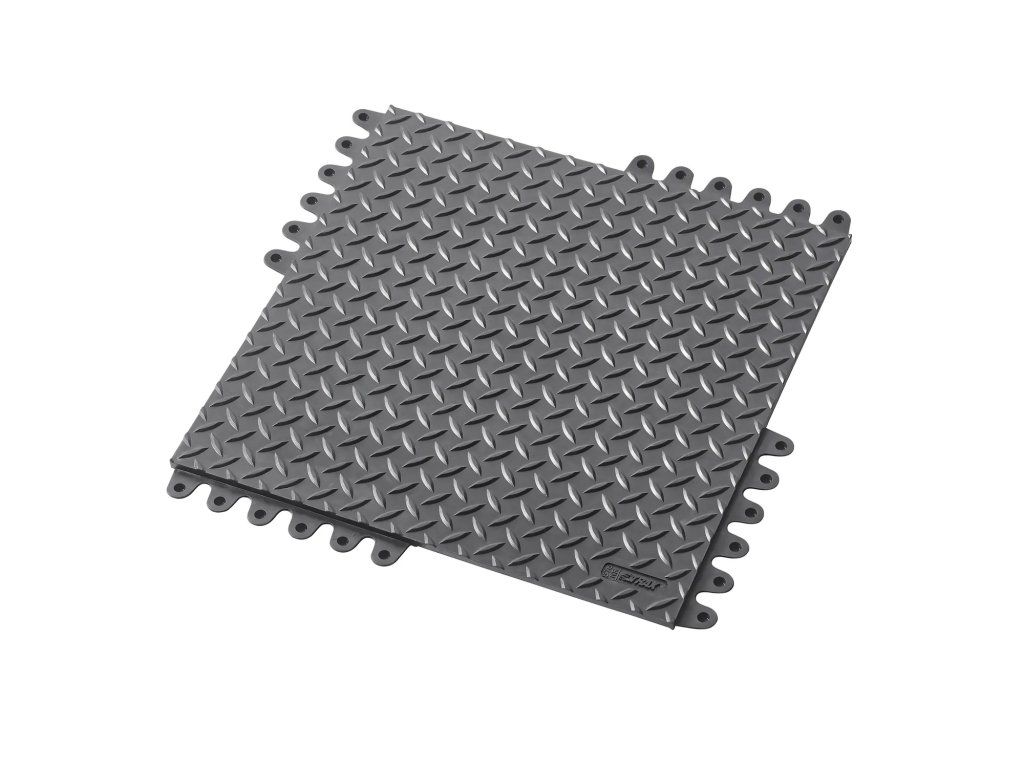

573 De-Flex® ESD - Modular antistatic mat with double locking system

573 De-Flex® ESD is a modular heavy-duty anti-fatigue mat system that combines worker comfort with antistatic protection. The popular diamond non-slip surface provides excellent traction and the system can be easily folded to cover large areas or as a mat for individual workplaces.

Main product benefits:

• Universal double locking system on all sides ensures an extra strong and seamless connection for quick installation
• 19 mm thick platform effectively isolates the worker from the hard floor and reduces fatigue when standing for a long time
• Specially shaped protrusions on the underside allow the mat to bend and adapt to every movement, providing ergonomic support
• The unique extended ramp prevents tripping and allows wheelchair access
• Intelligent bevel solutions for internal and external corners ensure safe and professional installation
• Anti-slip surface with diamond pattern (R10) provides excellent traction and freedom of movement
• Antistatic rubber compound dissipates static charge and protects sensitive electronic components

Recommended use: Suitable for placement in ESD assembly lines, during packaging, shipping and in logistics warehouses, at individual workplaces when working with electrostatically sensitive components.

Environment: Dry areas

Application: Industrial environments

Intensity of use: Heavy traffic

Cleaning and maintenance: It is recommended to use an ESD mat cleaner for cleaning. Regular maintenance using suitable ESD cleaning agents helps to preserve the antistatic properties of the mat.

Technical specifications:

• Material: Antistatic natural rubber
• Material group: Rubber
• Production process: Pressing
• Edges: Connectable Beveled edges are available
• US Flammability Rating: Compliant
• Anti-slip rating: R10

Sustainability and certifications:

• REACH compliant (Registration, evaluation, authorization and restriction of chemical substances)
• RoHS compliant (Restriction of Hazardous Substances)
• Recyclable material
• Warranty: 1 year

Available colors:

• Black

Available sizes:

• 45 cm x 45 cm (order no. 573S1818BL) - 3.3 kg - 19 mm
• 45 cm x 45 cm (order no. 573B1818BL) - 26.4 kg - 19 mm

Accessories:

• 825-C
• 051 ESD grounding cable
• 571 De-Flex® nitrile safety ramp
