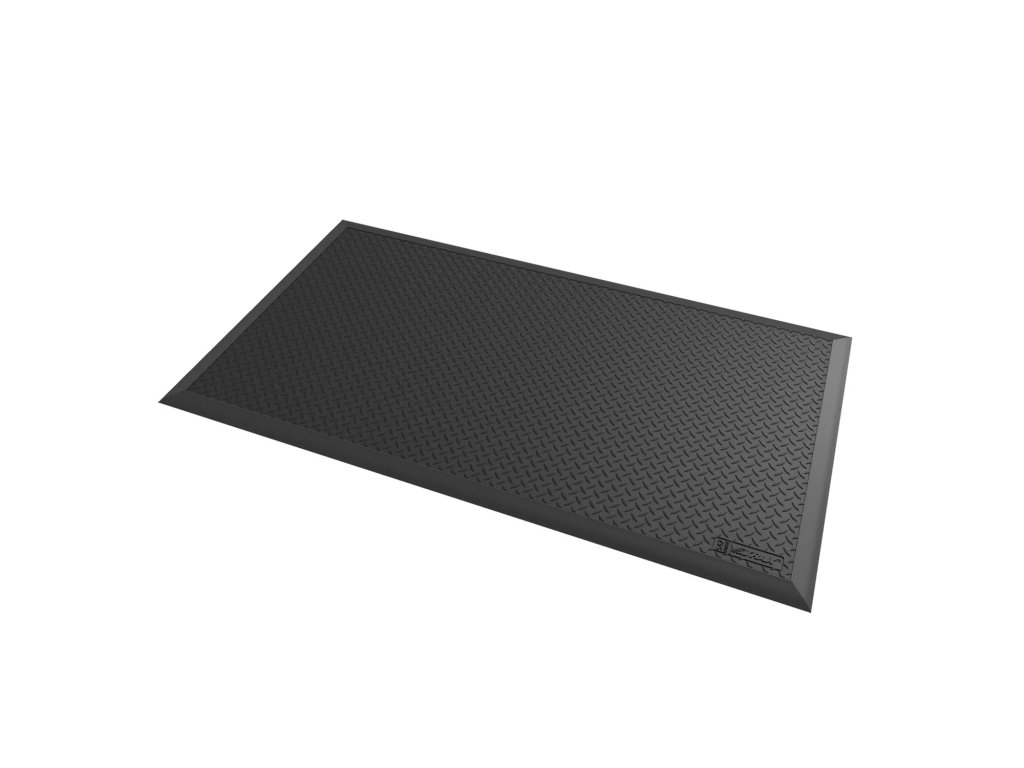

548 Diamond Flex ESD - Anti-static anti-fatigue mat with diamond pattern - black
High-quality antistatic anti-fatigue mat for individual workstations designed for heavy industrial operation. The mat with a thickness of 18.4 mm raises and isolates the worker from the hard floor, while special dome-shaped protrusions allow the mat to flex with every movement.
Main product benefits:
- Made of antistatic rubber compound to protect electronic components
- Standard mat sizes for individual workstations
- Freely placed, does not require installation
- Highly visible yellow safety raids on all sides
- Meets ESD standards for protection against electrostatic discharge
548 Diamond Flex™ ESD is a high-quality anti-static anti-fatigue mat designed for individual workstations in heavy industrial environments. Specially developed for use in areas where protection against electrostatic discharge is required.
Main product benefits:
- Made of antistatic natural rubber compound for electrostatic discharge
- Standard mat sizes for individual workstations
- Free installation, no installation required
- Highly visible yellow safety bumps on all sides to prevent tripping
- 18.4 mm thick platform raises and isolates the worker from the hard floor
- Special dome-shaped protrusions on the underside allow the mat to bend and adjust with every movement
- Meets IEC61340-4-1 standard (DIF category), with measured resistance Rg 10⁶ - 10⁹ Ω, Rp 10⁶ - 10⁹ Ω

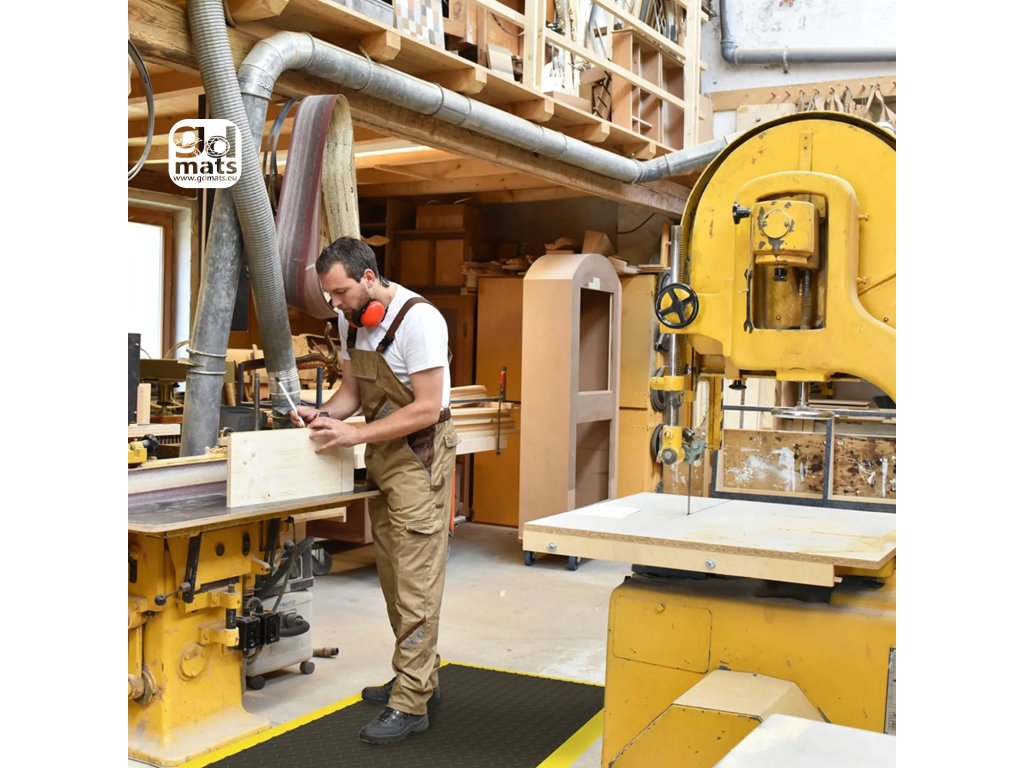

Recommended use: Suitable for placement in manufacturing plants, assembly lines, picking, packing and logistics warehouses, individual workstations.
Environment: Dry areas
Application: Industrial environment
Intensity of use: Heavy traffic
Cleaning and maintenance: Regular sweeping of the surface and back of the mat. The surface can be washed wet with a mild detergent/cleaning agent.
Technical specifications:
- Material: Antistatic natural rubber
- Thickness: 18.4 mm
- ESD: Meets IEC61340-4-1 (category DIF), with measured resistance Rg 10⁶ - 10⁹ Ω, Rp 10⁶ - 10⁹ Ω
- Manufacturing process: Compression molding
- Fire Rating: Passes
- Surface flammability: Passes
- Sustainability: REACH compliant, recyclable material
- Warranty: 1 year
Available colors:
- Black
- Black/Yellow
Available sizes:
- 97 cm x 163 cm (order no. 548S3864BL - Black) - 20.3 kg
- 102 cm x 163 cm (order no. 548S4064BL - Black) - 21.3 kg
- 97 cm x 163 cm (order no. 548S3864BY - Black/Yellow) - 21.36 kg
- 102 cm x 163 cm (order no. 548S4064BY - Black/Yellow) - 21.3 kg
| Category: | Industrial mats |
|---|---|
| EAN: | Choose variant |
| Warranty: | 1 year |
| Slip resistance: | Static dissipative natural rubber |
| ? Benefits Sought: | Anti - Fatigue, Anti - Slip, Insulation, Protection, ESD - Anti-static |
| ? Usage Intensity: | Heavy Trafic, Intensive use |
| ? Place of use: | interior |
| ? Size options: | Standard size |
| 2 Made in: | Thailand |
