620 Diamond Flex Lok™ - Modular PVC platform with anti-slip surface - Yellow

620 Diamond Flex Lok™ - Modular PVC platform with anti-slip surface

Exceptional fatigue reduction thanks to the unique "flex" design of the lower part. Available pre-assembled or as individual tiles for on-site installation. The permanent locking system ensures that the mat will not fall apart. No gluing is required. It is simply installed on site for custom configurations. Non-slip surface with dashboard design tested R10 according to DIN51130 and BG rule BGR181. The drainage system with round holes with a diameter of 22 mm facilitates the drainage of liquids and dirt from the work area without clogging, thus keeping the surface clean. Durable PVC grid panels protect floors while reducing fatigue. Custom made to your ideal floor mat in terms of shape and size. Anti-slip surfaces designed for safe movement. Beveled ramps are available to eliminate the risk of tripping and allow easy access to and from the mat surface.

Main product benefits:

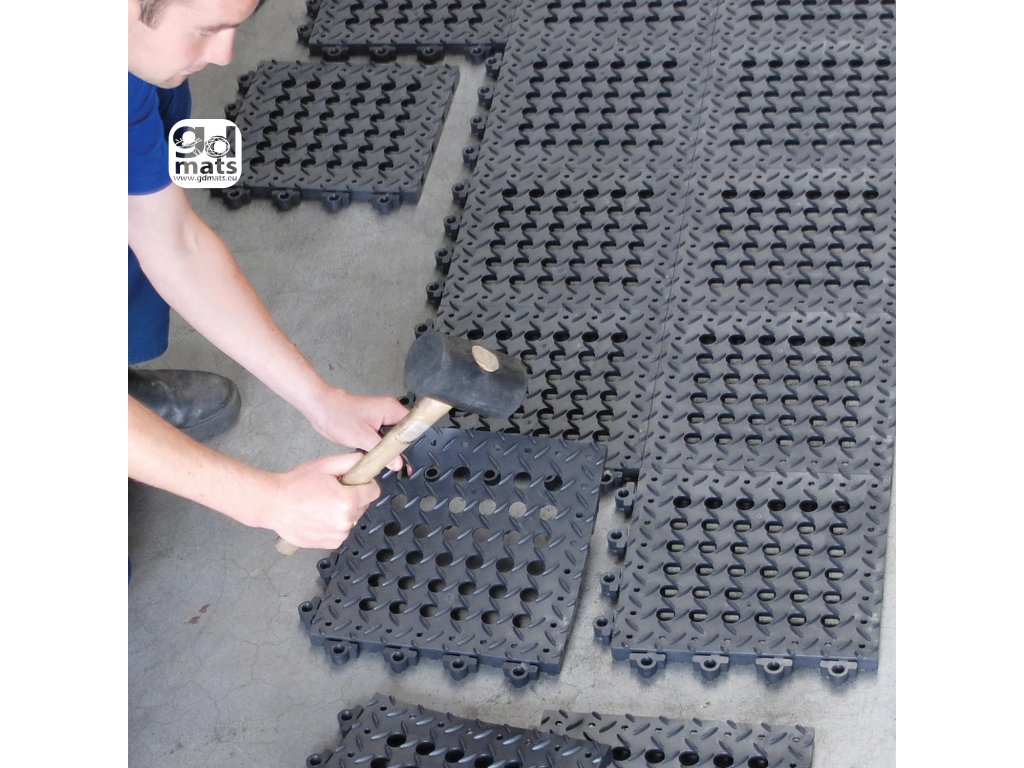

• Available pre-assembled or as individual tiles for on-site installation
• The permanent locking system ensures that the mat will not fall apart, no gluing required
• Anti-slip surface with dashboard design, tested R10 according to DIN51130 and BG rule BGR181

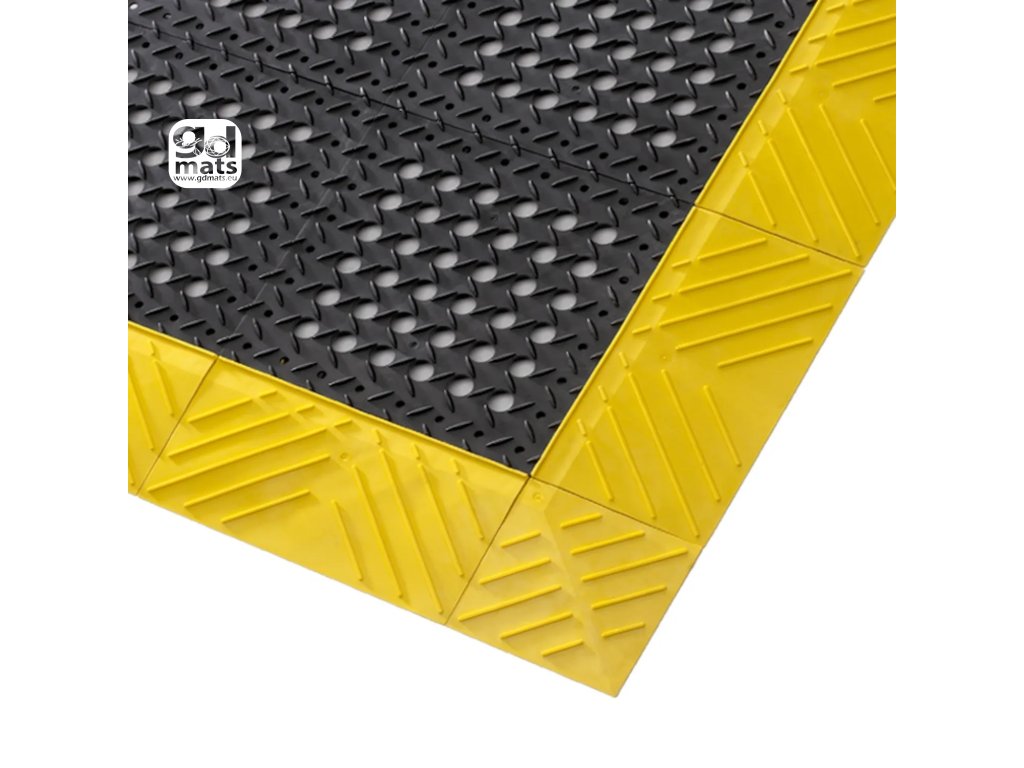

• Beveled ramps are provided to eliminate the risk of tripping and allow easy access to and from the mat surface
• Drainage system with holes with a diameter of 22 mm for efficient drainage of liquids
• Exceptional anti-fatigue properties increasing comfort and productivity
• Made of durable PVC material
• Possibility to customize dimensions and shapes as needed
• Easy installation without the need for gluing

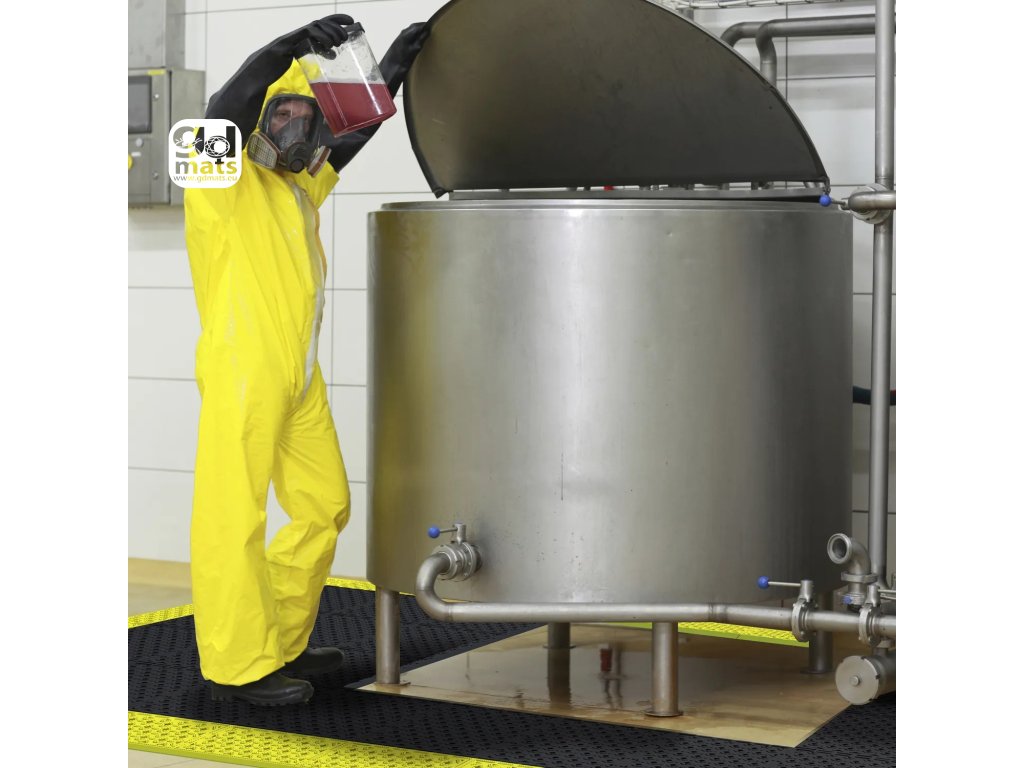

Recommended use: Suitable for manufacturing plants, production lines, assembly lines, CNC machines, metal processing, manufacturing operations.

Environment: Wet/dry and oily areas

Application: Industrial environments

Intensity of use: High load

Cleaning and maintenance: Water cleaning using a high-pressure hose (max. 124 bar) with hot water (max. 70°C), particularly effective for removing oils from the mat. For better results, it is recommended to use a mild soap, mild detergent or non-butyl degreaser. Do not clean mats with a non-slip surface with high pressure.

Technical specifications:

• Material: PVC
• Material group: PVC
• Manufacturing process: Injection molding
• Thickness: 25 mm
• EU fire classification: EN 13501-1 Cfl-S2
• Foam battery: 40 lb/in²
• Hardness: 85 Shore A
• Anti-slip classification: R10
• Coefficient of dry friction: 0.69
• Chemical resistance: Cat. In PVC

Sustainability:

• Complies with REACH (Registration, Evaluation, Authorization and Restriction of Chemicals)
• Complies with RoHS (Restriction of Hazardous Substances)
• Recyclable material
• Warranty: 1 year

Available colors:

• Black
• Black/Yellow

Available sizes: Diamond Flex Lok™ Black/Yellow:

• 107 cm x 183 cm (order no. 620S4272BY)
• 107 cm x 152 cm (order no. 620S4260BY)
• 76 cm x 152 cm (order no. 620S3060BY)

Diamond Flex Lok™ Black:

• per m² (order no. 620S0000BL)

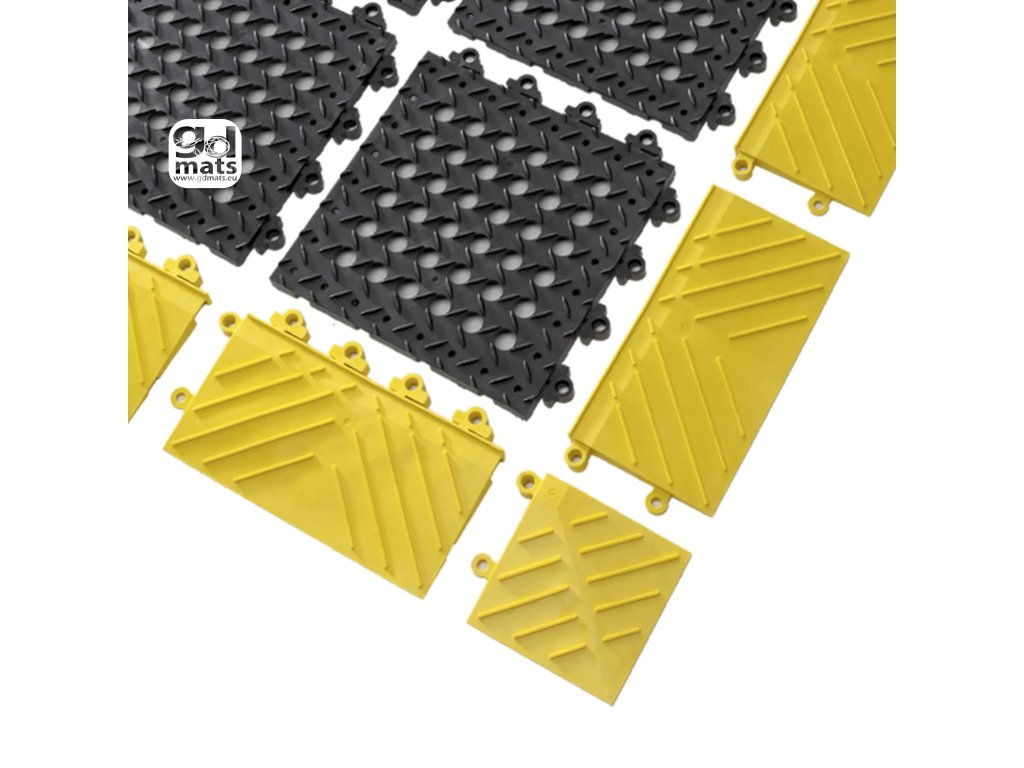

Accessories:

• 620-Tile Diamond Flex-Lok™ Tile
• 620-Ramp Diamond Flex-Lok™ Bevel

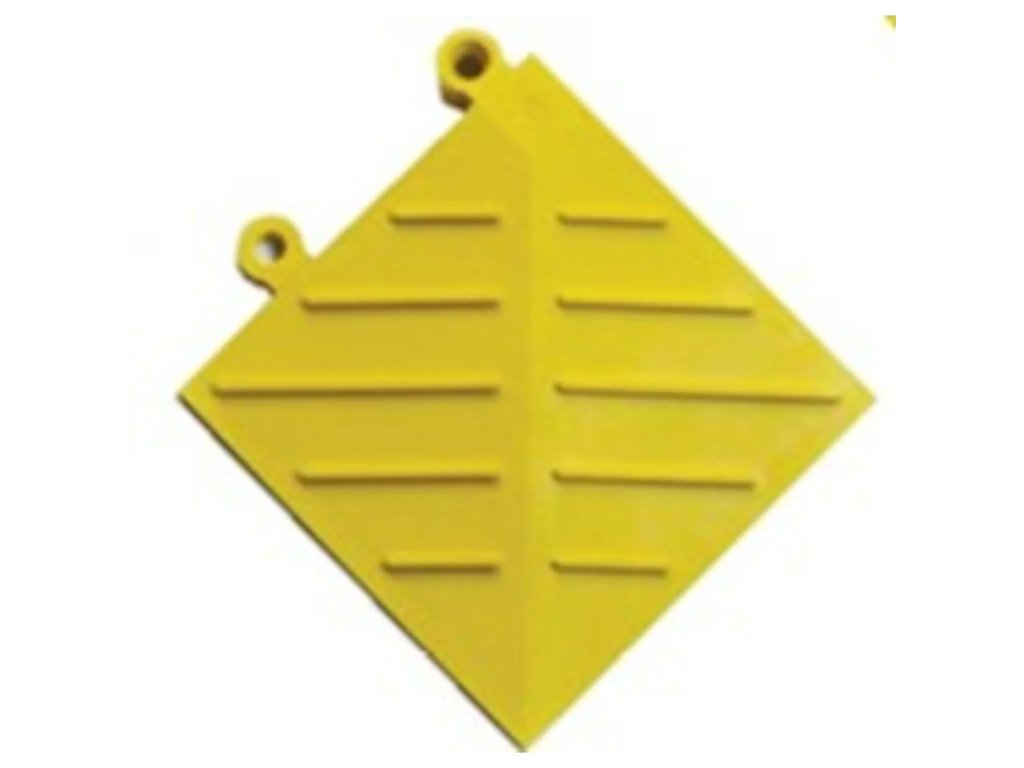

• 620-Corner Diamond Flex-Lok™ Corner
