463 Skywalker HD ESD - Antistatic rubber tiles with bubble pattern
Heavy duty rubber tiles that can be easily stacked to cover large areas or individual workstations. The ergonomic benefit comes from a 13 mm thick work surface with a bubble pattern.
Main product advantages:
- Unique design and workmanship allow easy handling and on-site installation
- The 30 cm x 30 cm grid on the underside of the mat allows for easy further adjustment

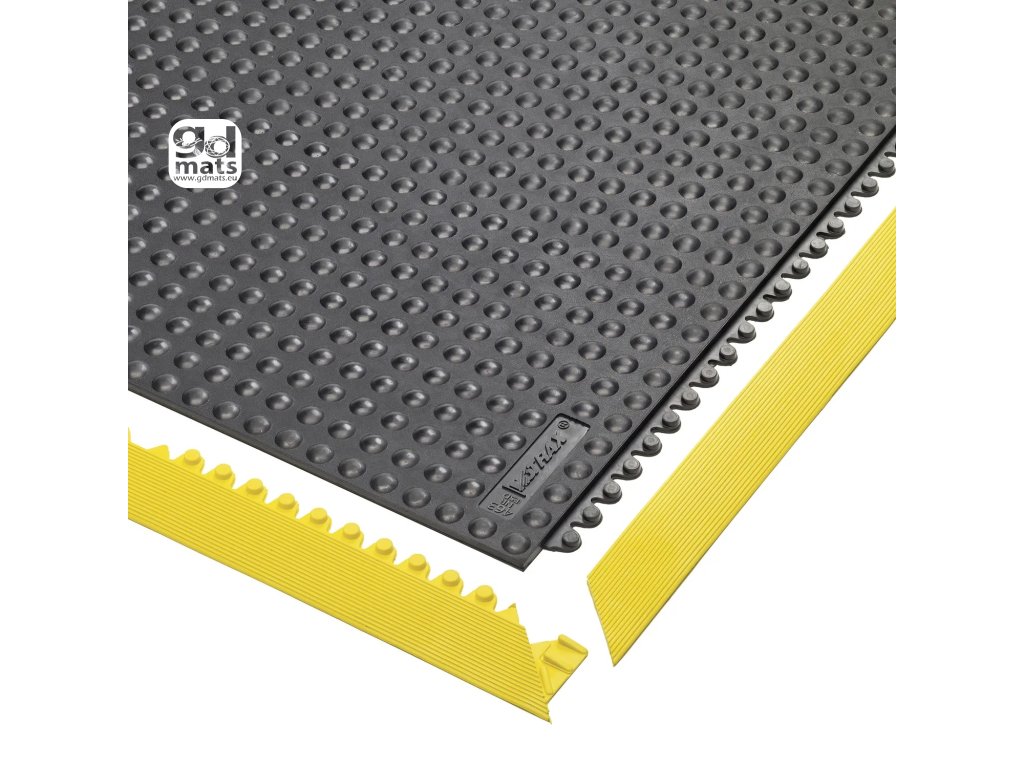

- Connectable Beveled edges prevent tripping and allow you to create internal and external corners
- Provides effective protection against electrostatic discharge
463 Skywalker HD™ ESD - 91cm x 91cm antistatic bubble pattern rubber tiles can be easily stacked to cover large areas or individual workstations. The ergonomic benefit comes from a 13 mm thick work surface with a bubble pattern, which provides maximum fatigue reduction in dry industrial environments.
Main product benefits:
- Unique design and workmanship allow easy handling and on-site installation
- The 30 cm x 30 cm grid on the underside of the mat allows for easy further adjustment
- Connectable Beveled edges prevent tripping and allow you to create internal and external corners
- Made of static dissipative natural rubber
- Anti-slip rating R9 according to DIN 51130
- 13 mm thickness provides excellent damping and comfort during long standing
- Meets IEC61340-4-1 standard (DIF category), measured resistance Rg 10⁶ - 10⁹ Ω, Rp 10⁶ - 10⁹ Ω
- Modular system allowing adaptation to different spaces
Recommended use:
- Dry zones

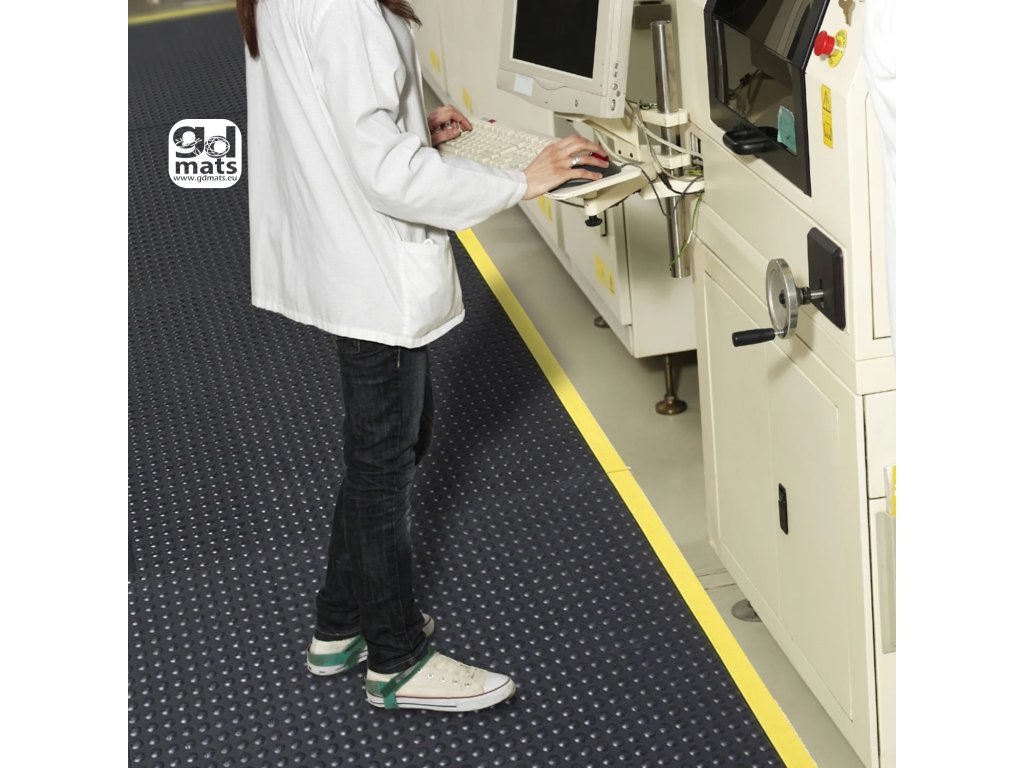

- For placement in ESD assembly lines, packing rooms, logistics warehouses and individual workstations
- Heavy traffic
Environment: Dry zones
Application: Industrial environments
Intensity of use: Heavy traffic
Cleaning and maintenance: ESD cleaner is recommended for antistatic table and floor mats
Technical specifications:
- Material: Static dissipative natural rubber
- Material group: Rubber
- Manufacturing process: Pressing under pressure
- Edges: Connectable Beveled edges are available
- Thickness: 13 mm
- Weight: 10 kg (91 cm x 91 cm), 12.3 kg/m²
- Slip resistance: R9
- Hardness: 67 Shore A
- Abrasion resistance 1000: 0.824
- Extension: 210%
- Tear strength: 10.5 N/mm
- Strength limit: 4.80 Mpa
- ESD Rg: 10⁶ - 10⁹ Ω
- ESD Rp: 10⁶ - 10⁹ Ω
- Surface flammability classification: Passes
- US Fire Classification: Passes
Sustainability and certifications:
- REACH compliant
- RoHS compliant (Restriction of Hazardous Substances)
- Made from recyclable material
- Warranty: 1 year
Available colors:
- Black
Available sizes:
- 91 cm x 91 cm (order no. 463S0033BL) - weight 10 kg
- According to square meters (order no. 463S0000BL) - weight 12.3 kg/m²
Accessories:
- 825-C
- 441 SkywalkerHD o-Curve™ Safety Ramp Nitrile
- 469 Skywalker HD Marking Line™
- 461 Skywalker HD™ Safety Ramp Nitrile
- 444 Skywalker HD o-Curve™ ESD Nitrile FR
- 434 Skywalker HD i-Curve™ ESD Nitrile FR
- 051 ESD grounding cable for the floor
| Category: | Industrial mats |
|---|---|
| EAN: | 0662641855588 |
| Warranty: | 1 year |
| Slip resistance: | Static dissipative natural rubber |
| ? Benefits Sought: | Anti - Fatigue, Anti - Slip, Insulation, Protection, ESD - Anti-static, Wheel and Cart Friendly |
| ? Usage Intensity: | Heavy Trafic, Intensive use |
| ? Place of use: | interior |
| ? Size options: | Standard size, Custom length, Modular |
| 2 Made in: | Thailand |
